Spray Gun W - 71
Spray Gun W - 71
● Dual action
● Adjustable needle
● Ergonomic style
Spray gun W-71 is gravity feeding and short body , the style and design is special, its more ergonomic and provide optimum comfort .this spray gun is dual action , user could adjust the color and the air pressure with two different method . W-71 is gravity feeding and suitable for general painting job . default nuzzle and needle is 1.5 mm , the main body made by aluminum die cast . spray gun for adjust the needle equipped by a screw in end of the body .

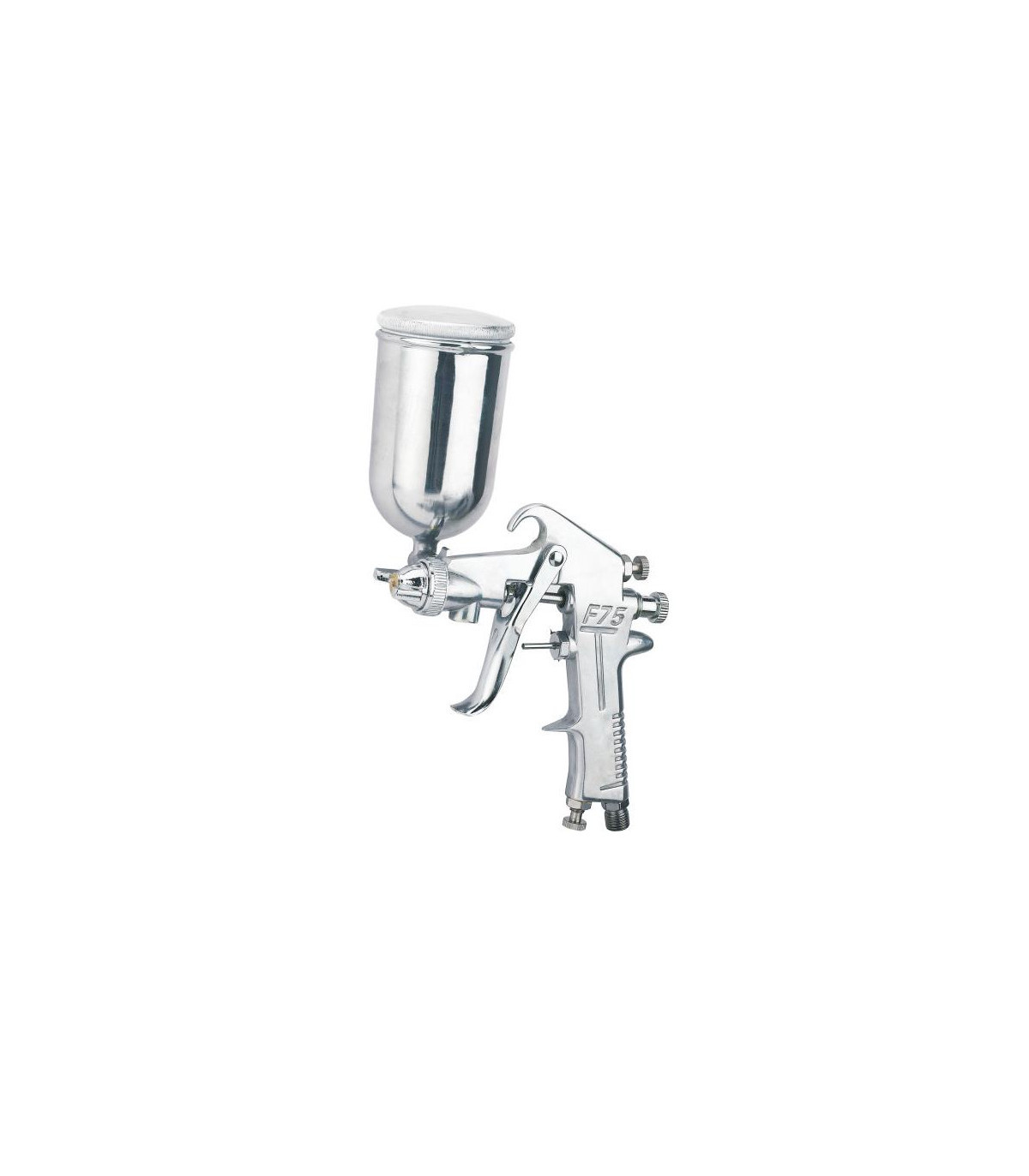

Spray Gun F - 75G
● Dual action
● Adjustable needle
● Ergonomic style
Spray gun W-71 is gravity feeding and short body , the style and design is special, its more ergonomic and provide optimum comfort .this spray gun is dual action , user could adjust the color and the air pressure with two different method . W-71 is gravity feeding and suitable for general painting job . default nuzzle and needle is 1.5 mm , the main body made by aluminum die cast . spray gun for adjust the needle equipped by a screw in end of the body .
|
Model No.
|
W - 71
|
|
|
|
|
Specifications
|
|
|
Cup capacity :
|
250 ml
|
|
Nuzzle size :
|
1,5 mm
|
|
Needle size :
|
1.5 mm
|
|
feeding :
|
gravity
|
| Fluid delivery : |
160-240 ml/min
|
| Air consumption : |
2-6 cfm
|
| Adjustment : |
needle adjustment
|
|
Dimension :
|
180x80x15 mm
|
|
Weight :
|
550 gr
|
|
Operating pressure :
|
2.5 bar
|
