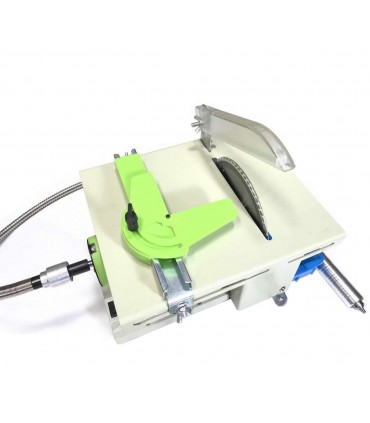

Mini Multi Function Bench Saw WSM 150
- Miter gauge and two slots for precise angle cutting
- Blade guard and transparent eye guard
- Maximum depth of cut at 90°: 45 mm
- Wood Blade diameter: 150 mm
- Ceramic blade diameter : 150 mm
- flexible shaft : 1~6 mm drill bit capacity
- polish wheel : 100 mm
- abrasive wheel : 100 mm
- 3 jaw chuck : 1~10 mm drill bit capacity

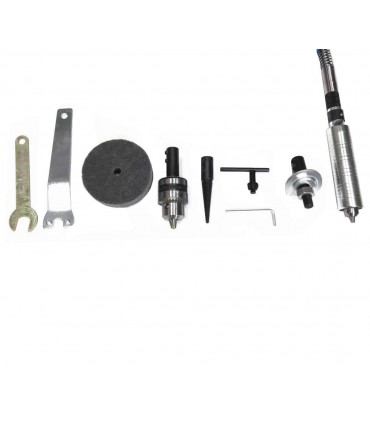

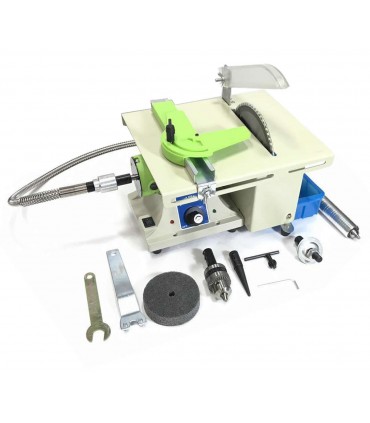

The 150 mm diameter circular saw blade and extra ceramic blade 150 mm with pipe and hose for cutting thin ceramic . with flexible shaft , polish wheel , 3 jaw chuck and abrasive wheel . on this mini table saw perfectly cuts picture frames, molding and plastics without having to fire up your big table saw! The 2 miter slots featured allow you to cut precise angles with no hassle.
Mini Multi Function Bench Saw WSM 150
- Miter gauge and two slots for precise angle cutting
- Blade guard and transparent eye guard
- Maximum depth of cut at 90°: 45 mm
- Wood Blade diameter: 150 mm
- Ceramic blade diameter : 150 mm
- flexible shaft : 1~6 mm drill bit capacity
- polish wheel : 100 mm
- abrasive wheel : 100 mm
- 3 jaw chuck : 1~10 mm drill bit capacity
Model No.
|
WSM 150
|
|
|
Specifications
|
|
Wood blade diameter :
|
150 mm
|
Ceramic blade diameter :
|
150 mm
|
Cut depth :
|
30 mm
|
Table size :
|
330x 330 mm
|
Speed variable :
|
500 ~7000 RPM
|
Flexible shaft :
|
800 mm
|
Drill bit 3 jaw chuck :
|
1 ~ 6 mm
|
Motor power :
|
450 W
|
Weight (net /gross ) :
|
10 / 13 kg
|
Voltage :
|
220-250 V / 50 -60 Hz
|
Over all dimension (L x W x H) :
|
300 x 250 x 160 mm
|
Pack size (L x W x H) :
|
280 x 220 x 200 mm
|
Data sheet
- Dimension
- 300 x 250 x 160 mm
- Pack Dimension
- 280 x 220 x 200 mm
- Weight Grass / Net
- 10 / 13 kg
- voltag
- 220 ~250 V / 50 ~60 Hz
- Power
- 450 W
