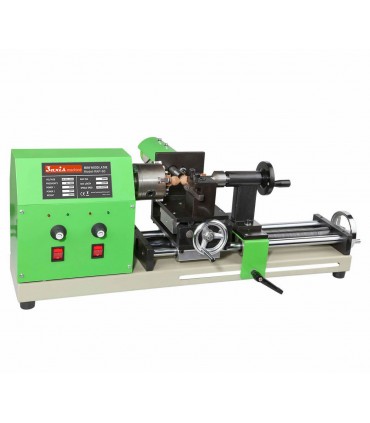

Table Wood Lathe RAP 60
● Variable speed
● Spindle DC motor 600 watt /Cutter DC motor 600 watt
● Precision wood Lathe
Wood working machine for cutting ball / orb
One of the problem in wood turning parts activity is cutting wood ball and Orb , RAP 60 wood lathe solve this problem more easy . machine equipped by two motor , one of them for spindle and other one install on machine slider . user must fix a wood rectangle angle block on spindle 4 jaw chuck and hold it from other side by live center then turn one both motors , user by hand wheel bring forward the second motor shaft , with this wood block change shape from block to ball according the diameter of cutter blade and wood block .
Table Wood Lathe RAP 60
● Variable speed
● Spindle DC motor 600 watt /Cutter DC motor 600 watt
● Precision wood Lathe
Wood working machine for cutting ball / orb
One of the problem in wood turning parts activity is cutting wood ball and Orb , RAP 60 wood lathe solve this problem more easy . machine equipped by two motor , one of them for spindle and other one install on machine slider . user must fix a wood rectangle angle block on spindle 4 jaw chuck and hold it from other side by live center then turn one both motors , user by hand wheel bring forward the second motor shaft , with this wood block change shape from block to ball according the diameter of cutter blade and wood block . both machine motor are variable speed and main slider rail screw cover with spiral metal sheet for protection against dust . machine could cut the precision wooden shaft as well . creation by this machine is depend on of user ability , for professional user its a prefect machine .
body made of iron plate and painting with powder coating . wood lathe pack include several accessories and setting tools .
|
Model No.
|
RAP 60
|
|
|
|
|
Specifications
|
|
|
Max Diameter :
|
50 mm
|
| Max length : |
300 mm
|
| Power : |
spindle motor 600 W cutter motor 600 W both DC motor
|
|
Voltage :
|
220 V - 50 ~60 Hz
|
|
Cross slide travel :
|
250 mm
|
|
Hole through spindle :
|
10 mm
|
|
Tail stock taper :
|
special taper by screw |
|
Spindle speed :
|
spindle 100 ~ 2800 RPM / cutter 100 ~ 7000 RPM
|
|
Over all dimension ( L x W x H ):
|
250 x 250 x 750 mm
|
|
Packing size ( L x W x H ) :
|
300 x 300 x 800 mm |
| Weight (net /gross ) : | 38 / 45 kg |
Data sheet
