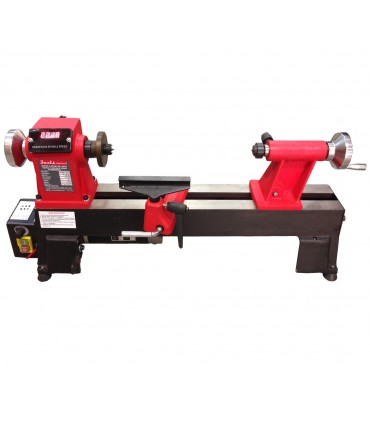

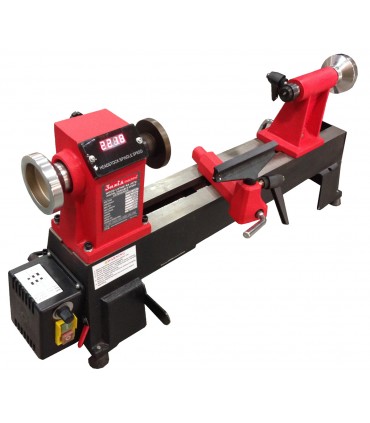

Wood Lathe RA 457A

Table Wood Lathe RA 457A

Digital spindle readout

Extension able body

Variable  speed

DC motor 550 watt

● Precision Cast iron body

Digital readout wood working machine

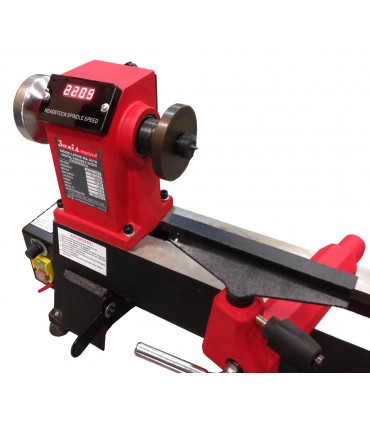

Extendable body body and variable DC motor wood lathe , high quality cast iron body with best machinery parts  .For doing better job in top of spindle on body embedded a digital read out display that indicate the spindle RPM and its useful for precision wood job ,plus  this wood lathe also features: variable speeds by using 3 step pulley .  the user could change pulley belt  by opening the plastic  cover with a manual handle in back side , then lose the motor screw , change pulley step, tide motor screw and close plastic cover , as the photos attached .


AED1,750.00
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
RA-457A
Love0
Add to wishlist
Related products
Description

Table Wood Lathe RA 457A

Digital spindle readout

Extension able body

Variable  speed

DC motor 550 watt

● Precision Cast iron body

Digital readout wood working machine

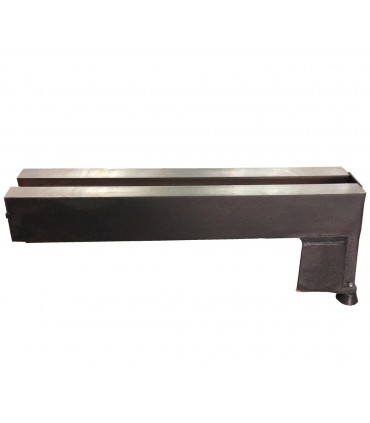

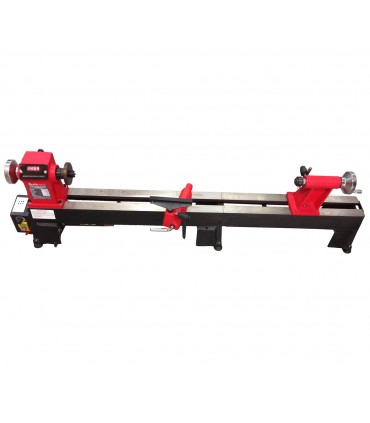

Extendable body body and variable DC motor wood lathe , high quality cast iron body with best machinery parts  .For doing better job in top of spindle on body embedded a digital read out display that indicate the spindle RPM and its useful for precision wood job ,plus  this wood lathe also features: variable speeds by using 3 step pulley .  the user could change pulley belt  by opening the plastic  cover with a manual handle in back side , then lose the motor screw , change pulley step, tide motor screw and close plastic cover , as the photos attached .the machine have extra body that you could use it for longer wood , its fix on machine by two screws .

all accessories include the machine , you only need some chisel.you could find more detail information in below table  data sheet .

 Model No.
RA 457A

 Specifications
  Max Diameter  :
250 mm
   Max length :
450 mm /900 mm with extension body(optional)
   Power :
550 W with DC motor
 Voltage :
220 V - 50 ~60 Hz
   Cross slide travel  :
250 mm
   Hole through spindle :
20 mm
   Tail stock taper :
MT 2
   Spindle speed :
3 Pulley range  650~1450  ،1250~1800 ،1600~3800  RPM and puls variable speed
   Over all dimension ( L x W x H ):
820 x 287 x 498 mm
   Packing size ( L x W x H )  :
890 x 320 x 260 mm
   Weight (net /gross ) : 34 / 40 kg





Product Details
RA-457A

Data sheet

Dimension
380x170x170 mm
Pack Dimension
300x200x200
Weight Grass / Net
5.5 / 6 kg
voltag
220 ~250 V / 50 ~60 Hz
Power
550 W
