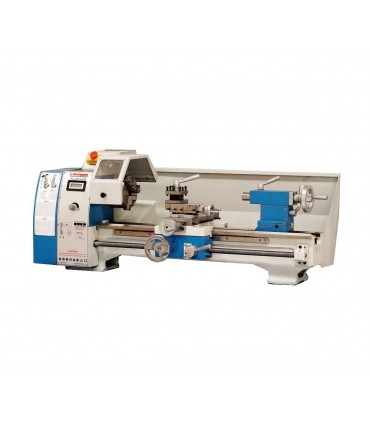

Lathe PL 240-550V
FEATURE:
● V-way bed is hardened and precision ground.
● Spindle is supported by precision taper roller bearing.
● Power longitudinal feed allows threading.
● Adjustable gibs for slideways.
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test fIow chart included.
Reference:
PL240-550V
Love0
Add to wishlist
|
FEATURE:
|
|
Model No.
|
PL 240 - 550
|
|
|
|
|
Specifications
|
|
|
Distance between centers
|
550 mm
|
|
Swing over bed
|
250 mm
|
|
Swing over cross slide
|
115 mm
|
|
Width of bed
|
135 mm
|
|
Taper of spindle bore
|
MT3
|
|
Spindle bore
|
26 mm
|
|
Range of spindle speeds (steps)
|
125 -2000 rpm
|
|
Range of longitudinal feeds
|
0.10 - 0.20 mm
|
|
Range of inch threads |
10 - 44 T.P.I - 10 range
|
|
Range of metric threads
|
0.4-3 mm - 12 range
|
|
Top slide travel
|
70 mm
|
|
Cross slide travel
|
115 mm
|
|
Tailstock quill travel
|
70 mm
|
|
Taper of tailstock quill
|
MT2
|
|
Main motor
|
750 W
|
|
Packing size
|
1150x560x560 mm
|
|
Net weight
|
115 kg
|
|
Standard Accessories
|
Optional Accessories
|
|
3-jaw chuck (125 mm)
|
4-jaw chuck (125 mm)
|
|
Splash guard
|
Backplate
|
|
Chip tray
|
Follow rest
|
|
Toolbox & tools
|
Steady rest
|
|
|
Face plate (175mm)
|
|
|
Threading dial
|
|
|
Stand
|
