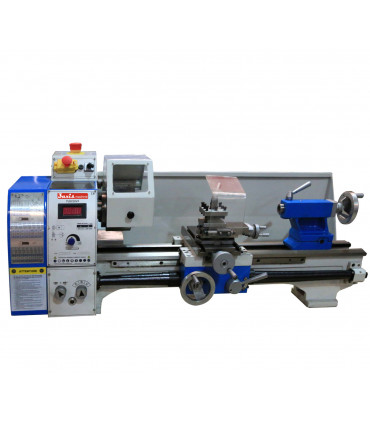

Lathe PLB 250 & PLB 250VF

FEATURE:


 ● V-way bed is hardened and precision ground.
 ● MT4 spindle get more capacity.
 ● Easy oprating gearbox .
 ● Power cross feed .
 ● Adjustable gibs for slideways .
 ● Right & Left hand threads cutting is available .
 ● Tailstock can be offset for turning tapers .






Read moreShow less
Lathe PLB 250 Between Center
Scan the QR code to open this page on your phone.
Reference:
PLB-250-VF
Love0
Add to wishlist
You may also like
Description

FEATURE:

 ● V-way bed is hardened and precision ground.
 ● MT4 spindle get more capacity.
 ● Easy oprating gearbox .
 ● Power cross feed .
 ● Adjustable gibs for slideways .
 ● Right & Left hand threads cutting is available .
 ● Tailstock can be offset for turning tapers .



 Model No.
                        PLB 250                         PLB 250 VF

 Specifications
 Distance between centers
400-550-750 mm
 Swing over bed
250 mm
 Swing over cross slide
140 mm
 Width of bed
132 mm
 Taper of spindle bore
MT4
 Spindle bore
26 mm
 Number of spindle speeds
Variable speed
 Range of spindle speeds
50 - 2250 rpm
 Range of cross feeds
                         -                                  0.03 - 075 mm
 Range of longitudinal feeds
                                0.07 - 0.40 mm          0.06 - 0.32 mm
 Range of inch threads
8 - 56 T.P.I
 Range of metric threads
0.2-3.5 mm
 Top slide travel
50 mm
 Cross slide travel
115 mm
 Tailstock quill travel
65 mm
 Taper of tailstock quill
MT 2
 Brushless motor
1.1 kw  (DC)
 Machine size
                    1000/1100/1400x590x500 mm
 Packing size
                    1100/1250/1500x570x570 mm
 Net weight
110/120/140 kg



 Standard Accessories
 Optional Accessories
 3-jaw chuck (125 mm)
 Steady Rest
 Splash guard
 Follow Rest
 Chip tray
 Face Plate ( 240 mm )
 Toolbox & tools
 4-Jaw Chuck ( 125 mm )

 Backplate For 4-jaw Chuck ( 125 mm )

 2-Axis DRO ( Magnetic Scales )

 3-Axis DRO ( Magnetic Scales )

 Turning Tools 7 pcs (12 mm)

 Quick Change Tool Post (TOOA1)

 Threading Dial ( Metric/Inch )

 ER25 Collet Fixture

 Stand (400-550-750 )

 Luxury Stand (400-550-750 )
