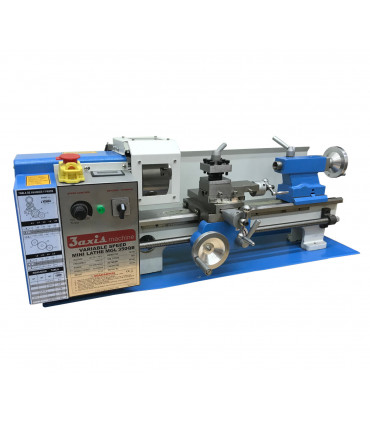

Mini Lathe MGL 350 QB
- MGL 350 QB Mini Lathe
- Variable Spindle Speed
- Spindle Digital Read Out

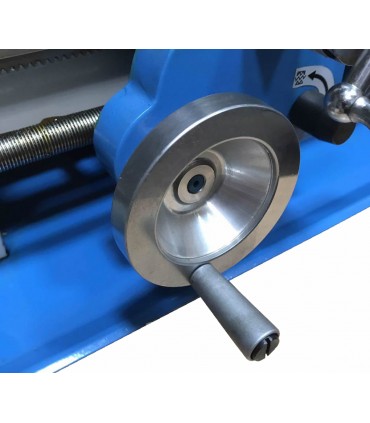

- Aluminum Hand Whee
- Constructed with cast iron giving great rigidity
- Precision ground Vee bed slide ways

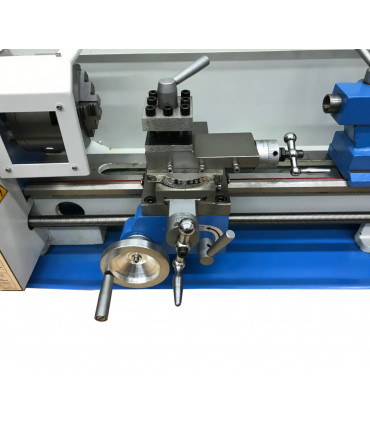

- Fully featured saddle and carriage assembly including powered lead screw
- 550 W Brush less motor with variable speed

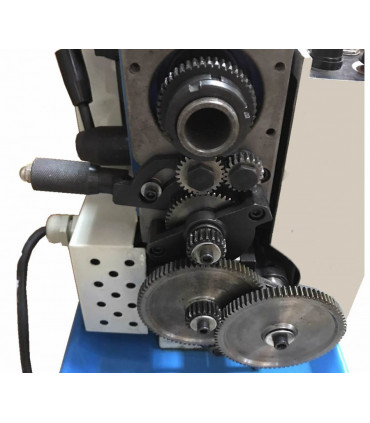

- Change wheel set providing thread cutting selections between 0.4-2.0 mm & 12-52 tpi
AED4,200.00
Reference:
MGL-350-QB
Love0
Add to wishlist
You may also like
FEATURE:
- MGL 350 QB Mini Lathe
- Variable Spindle Speed
- Spindle Digital Read Out
- Aluminum Hand Whee
- Constructed with cast iron giving great rigidity
- Precision ground Vec bed slide ways
- Fully featured saddle and carriage assembly including powered lead screw
- 550W brush less motor with variable speed
- Change wheel set providing thread cutting selections between 0.4-2.0mm & 12-52 tpi
|
Model No.
|
MGL 350 QB
|
|
|
|
|
Specifications
|
|
|
Distance between centers
|
350 mm
|
|
Swing over bed
|
180 mm
|
|
Cross slide travel
|
65 mm
|
|
Compound travel
|
55 mm
|
|
Hole through spindle
|
20 mm
|
|
Spindle taper
|
MT3
|
|

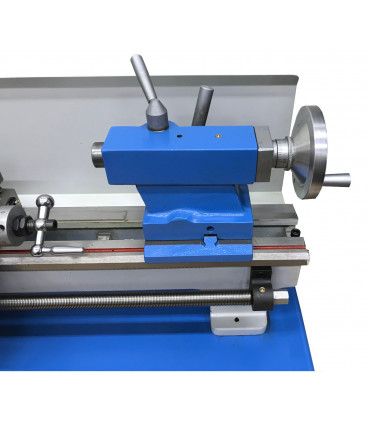

Tail stock taper
|
MT2
|
|
Spindle bore
|
20 mm
|
|
Spindle speed
|
100 - 2500 RPM
|
|
Range of metric threads
|
0.4-2 mm - (10 thread pitches )
|
|
Range of inch threads
|
12-52 TPI - (12 thread pitches )
|
|
Motor output power
|
550 W - Brushless
|
|
Over all dimension (LxWxH )
|
860x300x300 mm
|
|
Packing size (LxWxH)
|
890x360x390 mm
|
|
Standard Accessories
|
Optional Accessories
|
|
3-jaw chuck (100 mm)
|
4-jaw chuck (100 mm)
|
|
Toolbox & tools
|
Metal gears
|
|
|
Follow rest
|
|
|
Steady rest
|
|
|
Face plate (125 mm)
|
|
|
Threading dial
|
|
|
Stand
|
