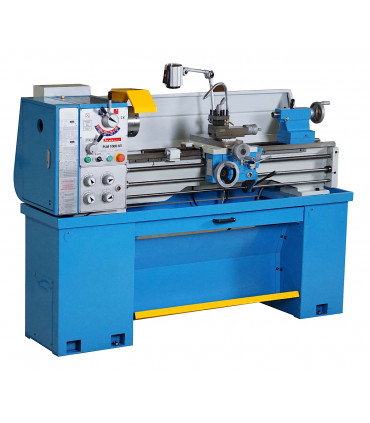

Heavy Duty Lathe PLM 1000 A3 - 750 A3

FEATURE:

 ● Hardened and ground bedway .
 ● Large bore ( 38 mm ) spindle supported on taper roller bearing .
 ● T - slotted cross side .
 ● Enclosed gearbox enables large feed and threading .
 ● Right & Left hand threads cutting is available .
 ● Tailstock can be offset for turning tapers .







Read moreShow less
Scan the QR code to open this page on your phone.
Reference:
PLM-1000-A3-750A3
Love6
Add to wishlist
You may also like
Description

FEATURE:

 ● Hardened and ground bedway .
 ● Large bore ( 38 mm ) spindle supported on taper roller bearing .
 ● T - slotted cross side .
 ● Enclosed gearbox enables large feed and threading .
 ● Right & Left hand threads cutting is available .
 ● Tailstock can be offset for turning tapers .




 Model No.
                        PLM 1000 A3  - PLM 750 A3

 Specifications
 Distance between centers
1000 mm  (750 mm available )
 Swing over bed
330 mm
 Swing over cross slide
198 mm
 Width of bed
187 mm
 Taper of spindle bore
          MT5
 Spindle bore
  38 mm
 Steps of spindle speeds
  8
 Range of spindle speeds
  70 - 2000 rpm
 Range of cross feeds
                   0.018-0.238 mm/r
 Range of longitudinal feeds
                0.078 - 1.044 mm/r
 Range of metric threads
0.4 - 7 mm (26)
 Range of inch threads
56 -4 T.P.I (34)
 Leadscrew thread
3 mm or 8 T.P.I
 Feed rod diameter
19 mm
 Max cutting tools
16 x 16 mm
 Top slide travel
68 mm
 Cross slide travel
160 mm
 Tail stock quill travel
92 mm
 Tail stock diameter
32 mm
 Taper of tailstock quill
MT3
 Motor
1.5  kw
 Machine size
             1900×750×1170 mm
 Packing size
                    1920×750×1500 mm (750 A3 -1700x750x1500mm)
 Net weight
  560  kg ( 750 A3 - 540 kg )



 Standard Accessories
 Optional Accessories
 3-jaw chuck (160 mm)
 Foot brake
 4-jaw chuck (200 mm)
 Live center
 4 - way tool post
 Leadscrew cover
 Face plate
 Taper turning attachment
 Full length splash guard
    Tool post cover
 Chuck guard
 3-axis DRO
 Splash guard
    Round face head stock
 Threading dial
  Electronic brake
 Chip tray

 Coolant system

 Halogen lamp

 2-axis DRO
 CE components
 Micro carriage stop

 Main ON/OFF switch
