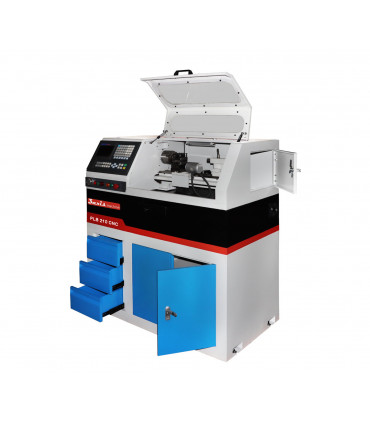

Lathe PLB 180 / 210 CNC
FEATURE:
● Mini lathe cnc in two size .
● High quality ball screw .
● Motor power 750 watt .
● Protection guard .
● Best support for parts and service .
● Primary train for start the machine ( Pay attention Machine need educated technician ).
Reference:
PLB-180-210-CNC
Love24
Add to wishlist
You may also like
FEATURE:
● Mini lathe cnc in two size .
● High quality ball screw .
● Motor power 750 watt .
● Protection guard .
● Best support for parts and service .
● Primary train for start the machine ( Pay attention Machine need educated technician ).
|
Model No.
|
PLB -180 CNC , PLB-210 CNC
|
|
|
|
|
Specifications
|
|
|
Tactical diameter :
|
180 mm 210 mm
|
|
Bed length z :
|
300 mm 400 mm
|
|
Bed width :
|
83 mm 100 mm
|
|
Speed of mail shaft :
|
50 - 2250 RPM
|
|
Spindle taper :
|
MT3
|
|
Z-axis moving speed
|
1000 mm / min
|
|
X-axis moving speed :
|
1000 mm / min
|
|
Z-axis feed speed :
|
500 mm / min
|
|
X-axis feed speed :
|
250 mm / min
|
|
Maximum torque of z axis :
|
2 Nm
|
|
Maximum torque of x axis :
|
2 Nm
|
|
Z axis travel :
|
250 mm
|
|
X axis travel :
|
60 mm
|
|
Torsion of z-axis motor :
|
2 N
|
|
Torque of x-axis motor :
|
2 N
|
|
Tailstock taper :
|
MT2
|
|
Tailstock travel :
|
50 mm
|
|
Accuracy of z and x axis return :
|
0.01 mm
|
|
Motor power :
|
750 watt
|
|
Net / Gross weight :
|
190 / 210 Kg
|
