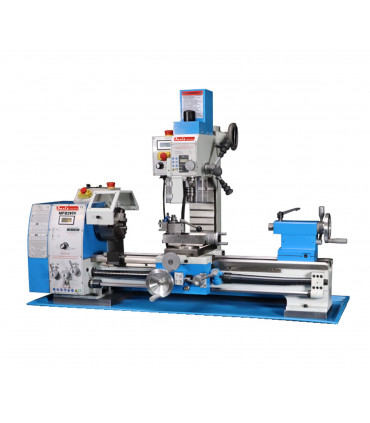

Multi Function Machines MFB 290 V (Lathe & Mill )
FEATURE:
● Variable speed
● Spindle is supported by precision taper roller bearing.
● Power longitudinal feed allows threading.
● Metal gears , motor power 1.5 KW for Lathe and 1.5 KW for mill
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test fIow chart included.
Reference:
MFB-290-V
Love0
Add to wishlist
You may also like
|
FEATURE: ● Variable speed |
|
Model No.
|
VFB-290V
|
|
|
|
|
Specifications of Lathe
|
|
|
Distance between centers
|
750 mm
|
|
Swing over bed
|
290 mm
|
|
Swing over cross slide
|
170 mm
|
|
Width of bed
|
180 mm
|
|
Taper of spindle bore
|
MT5
|
|
Spindle bore
|
38 mm
|
|
Range of spindle speeds (steps)
|
50-1800 rpm
|
|
Range of longitudinal feeds
|
0.017 - 0.25 mm
|
|
Range of inch threads |
8 - 56 T.P.I
|
|
Range of metric threads
|
0.2 - 3.5 mm
|
|
Top slide travel
|
55 mm
|
|
Cross slide travel
|
85 mm
|
|
Tailstock quill travel
|
170 mm
|
|
Taper of tailstock quill
|
MT3
|
|
Main motor
|
1.5 KW
|
|
Packing size
|
990x480x860 mm
|
|
Net weight
|
280 kg
|
|
Model No.
|
MFB-290 V
|
|
Specifications of Mill & Drill
|
|
|
Spindle bore :
|
MT2
|
|
Spindle stroke :
|
50 mm
|
|
Spindle speed
|
50 - 2250 RPM
|
|
Mill head travel (X axis ):
|
500 mm
|
|
Max. distance spindle to table :
|
300 mm
|
|
Max. distance spindle to column :
|
185 mm
|
|
Motor power
|
1.5 KW
|
|
Packing size
|
1400x780x1070 mm
|
|
Standard Accessories
|
Optional Accessories
|
|
3-jaw chuck (125mm)
|
4-jaw chuck (125mm)
|
|
Splash guard
|
Backplate
|
|
Chip tray
|
Follow rest
|
|
Toolbox & tools
|
Steady rest
|
|
|
Face plate
|
|
|
ER25 Collet Chuck for Lathe
|
|
|
ER25 Collet Chuck for Lathe
|
|
|
Turning Tools
|
|
|
Stand
|
|
|
Speed DRO for Mill
|
|
|
Depth Ruler for Mill
|
|
|
Speed DRO for Lathe
|
