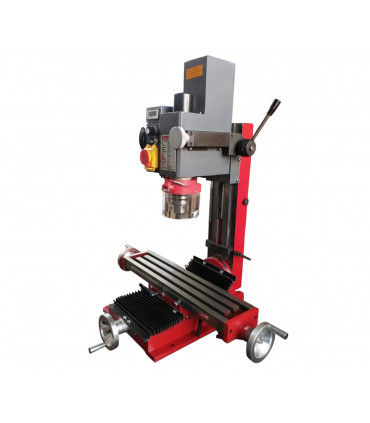

Mill PMB 14V - Brushless Motor
FEATURE:
- Mill PLB 14 with digital read out speed , with 550 watt brushless motor
- Variable Speed
- Cast iron construction
- Coarse feed for drilling, fine for milling
- Column tilts up to 45° for angled machining
- Two electronically variable control spindle speed ranges
- Two function machine - vertical mill or small pillar drill
- Supplied with 16mm chuck, drawbar and service tools
Reference:
PMB-14V
Love5
Add to wishlist
You may also like
FEATURE:
|
|
Model No.
|
PMB- 14V
|
|
Specifications
|
|
|
Drilling capacity
|
16 mm
|
|
End milling capacity
|
13 mm
|
|
Face milling capacity
|
30 mm
|
|
longitudinal axis (X)
|
250 mm
|
|
Cross axis (Y)
|
100 mm
|
|
head stock travel
|
188 mm
|
|
Throat
|
140 mm
|
|
Max. distance spindle to table
|
220 mm
|
|
Table effective size |
410 x 112 mm
|
|
T-slot size
|
12x3 mm
|
|
Head tilt
|
45 degree L / 45 degree R
|
|
Motor output power
|
550 W / 220 V / 50~60 Hz Brushless Motor
|
|
Spindle speed
|
low range / high range50 ~2500 rpm 10%
|
|
Overall dimension (LxWxH)
|
750x450x500 mm
|
|
Packing size (LxWxH)
|
570x510x740 mm
|
|
Weight (net /gross)
|
62 / 80 kg
|
|
spindel taper
|
MT 3 |
|
Standard Accessories
|
Optional Accessories
|
|
Toolbox & tools
|
MT 3 collet set , 6 pcs
|
|
|
universal vice
|
|
MT3 - 3 jaw chuck 5~22 mm
|
|
|
|
horizontal vice
|
|
|
Stand
|
|
|
|
|
|
