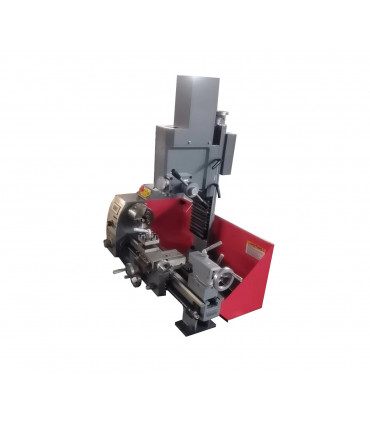

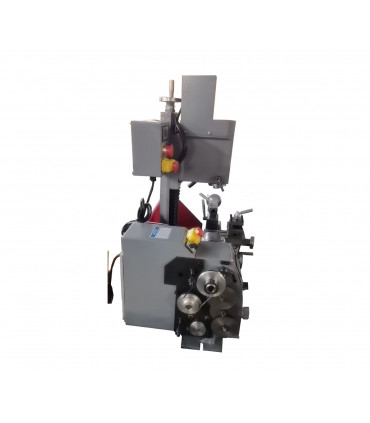

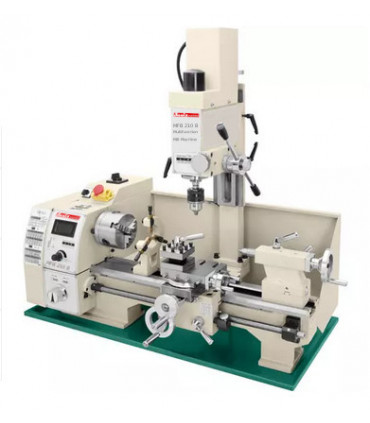

Multi Function Machines MFB 210 B (Lathe & Mill )
FEATURE:
● Variable speed
● Spindle is supported by precision taper roller bearing.
● Power longitudinal feed allows threading.
● Metal gears , brushless motor 750 watt for Lathe and 250 watt for mill
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test fIow chart included.
AED9,850.00
Reference:
MFB-210-B
Love7
Add to wishlist
You may also like
Mill PMB 12V - Brushless Motor
AED3,850.00
|
FEATURE: ● Variable speed |
|
Model No.
|
VFB-210V
|
|
|
|
|
Specifications of Lathe
|
|
|
Distance between centers
|
400 mm
|
|
Swing over bed
|
210 mm
|
|
Swing over cross slide
|
110 mm
|
|
Width of bed
|
100 mm
|
|
Taper of spindle bore
|
MT3
|
|
Spindle bore
|
21 mm
|
|
Range of spindle speeds (steps)
|
50-2500 rpm
|
|
Range of longitudinal feeds
|
0.08 - 0.16 mm
|
|
Range of inch threads |
8 - 44T.P.I
|
|
Range of metric threads
|
0.5 - 3 mm
|
|
Top slide travel
|
55 mm
|
|
Cross slide travel
|
75 mm
|
|
Tailstock quill travel
|
60 mm
|
|
Taper of tailstock quill
|
MT2
|
|
Main motor
|
750W - Brushless Motor
|
|
Packing size
|
990x480x860 mm
|
|
Net weight
|
135 kg
|
|
Model No.
|
VFB-210V
|
|
Specifications of Mill
|
|
|
Swing :
|
330 mm
|
|
Spindle taper
|
MT 2
|
|
Distance from spindle to table
|
230 mm
|
|
Distance from spindle to bed
|
290 mm
|
|
Head vertical travel
|
160 mm
|
|
Head tilt
|
45 degree left , 45 degree right
|
|
Table dimensions
|
78 mmW x 180 mm L x 25 mm T
|
|
T-slots
|
6 mm
|
|
Spindle speed
|
50 ~ 2500 RPM
|
|
Drilling capacity
|
13 mm
|
|
Taper of tailstock quill
|
MT2
|
|
Main motor
|
250W - Brushless Motor
|
|
Standard Accessories
|
Optional Accessories
|
|
3-jaw chuck (100mm)
|
4-jaw chuck (100mm)
|
|
Splash guard
|
Backplate
|
|
Chip tray
|
Follow rest
|
|
Toolbox & tools
|
Steady rest
|
|
|
Face plate (175mm)
|
|
|
Threading dial
|
|
|
Stand
|
