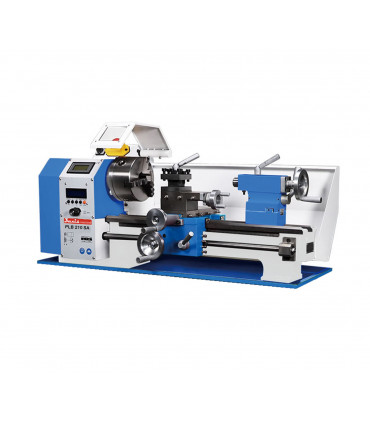

Lathe PLB 210 SA- Semi Automatic

FEATURE:

●  Semi automatic mini lathe ( no need change gears manually .
●  Digital gear box adjustment for screw thread .
●  Metal gears , 1.1 KW Motor Power , 125 mm 3 Jaw Chuck.
●  V-way bed is hardened and precision ground.
 Spindle is supported by precision taper roller bearing.
 Power longitudinal feed allows threading.
 Adjustable gibs for slideways.
 Tailstock can be offset for turning tapers.
Tolerance test certificate, test fIow chart included.

Read moreShow less
Scan the QR code to open this page on your phone.
Reference:
PLB-210-SA
Love24
Add to wishlist
You may also like
Description

FEATURE:

●  Semi automatic mini lathe ( no need change gears manually .
●  Digital gear box adjustment for screw thread .
●  Metal gears , 1.1 KW Motor Power , 125 mm 3 Jaw Chuck.
●  V-way bed is hardened and precision ground.
 Spindle is supported by precision taper roller bearing.
 Power longitudinal feed allows threading.
 Adjustable gibs for slideways.
 Tailstock can be offset for turning tapers.
 Tolerance test certificate, test fIow chart included.

 Model No.
PLB-210 SA

 Specifications
 Distance between centers :
400 mm
  3 Jaw chuck Dia :
125 mm
 Swing over bed :
210 mm
 Swing over cross slide :
140 mm
 Width of bed :
100 mm
 Taper of spindle bore :
MT5
 Spindle bore :
38 mm
 Range of spindle speeds (steps) :
50-2500 RPM
 Range of longitudinal feeds :
0.1 - 0.2 mm

 Range of inch threads :

10 - 44T.P.I
 Range of metric threads :
0.5-3.5 mm
 Top slide travel :
80 mm
 Cross slide travel :
100 mm
 Tailstock quill travel :
60 mm
 Taper of tailstock quill :
MT2
 Main motor :
1.1 KW
 Machine size :
740x390x370 mm
   Packing  size :
800x480x460 mm
 Net weight :
65 kg



 Standard Accessories
 Optional Accessories
 3-jaw chuck (100mm)
 4-jaw chuck (125 mm)
 Splash guard
 Backplate for 4 jaw chuck
 Chip tray
 Follow rest
 Toolbox & tools
 Steady rest

 Face plate (175mm)

 Threading dial (Metric , Inch )

 2-Axis DRO (Magnetic Scale )

 3-Axis DRO (Magnetic Scale )
