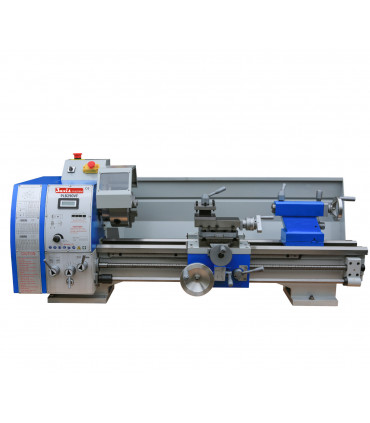

Lathe PLB 290 VF

FEATURE:

 ● Hardened and ground bedway .
 ● Large bore ( 38 mm ) spindle supported on taper roller bearing .
 ● T - slotted cross side .
 ● Enclosed gearbox enables large feed and threading .
 ● Right & Left hand threads cutting is available .
 ● Tailstock can be offset for turning tapers .







Read moreShow less
Reference:
PLB-290-VF
Love0
Add to wishlist
Related products
Description

FEATURE:

 ● Hardened and ground bedway .
 ● Large bore ( 38 mm ) spindle supported on taper roller bearing .
 ● T - slotted cross side .
 ● Enclosed gearbox enables large feed and threading .
 ● Right & Left hand threads cutting is available .
 ● Tailstock can be offset for turning tapers .




 Model No.
                        PLB 290  VF

 Specifications
 Distance between centers
750 mm
 Swing over bed
290 mm
 Swing over cross slide
165 mm
 Width of bed
180 mm
 Taper of spindle bore
          MT5/D1- 4
 Spindle bore
  38 mm
 Number of spindle speeds
  Variable speed
 Range of spindle speeds
  50 - 2000 rpm
 Range of cross feeds

 Range of longitudinal feeds
                0.07 - 0.20 mm
 Range of inch threads
8 - 56 T.P.I
 Range of metric threads
0.4-3.5 mm
 Top slide travel
70 mm
 Cross slide travel
140 mm
 Tailstock quill travel
70 mm
 Taper of tailstock quill
MT 3
 Brushless motor
1.5 kw  (DC)
 Machine size
             1300x550x500 mm
 Packing size
                    1400x680x700 mm
 Net weight
  250 kg



 Standard Accessories
 Optional Accessories
 3-jaw chuck (160 mm)
 Steady Rest
 Splash guard
 Follow Rest
 Chip tray
 Face Plate ( 240 mm )
 Toolbox & tools
 4-Jaw Chuck ( 160 mm )

 Backplate For 4-jaw Chuck ( 160 mm )

 ER25 Collet Chuck for Lathe

    Turning Tools

  Stand
