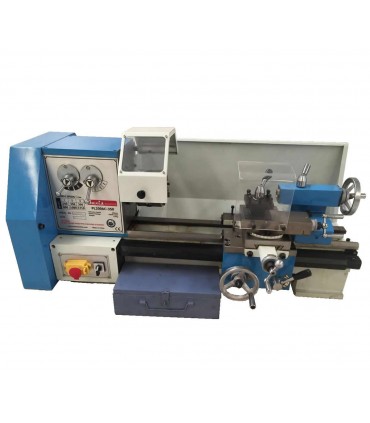

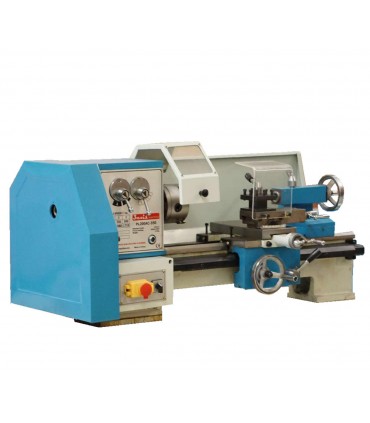

Lathe PL 200AC- 350

  • • TLM-HV30 200 D Mini Lathe
  • • Variable Spnidle Speed
  • • Spindle Digital Read Out
  • • Aluminum Hand Wheel
  • • Constructed with cast iron giving great rigidity
  • • Precision ground Vee bed slide ways
  • • Fully featured saddle and carriage assembly including powered lead screw
  • • 150W motor with variable speed and a 2 speed gearbox
  • • Change wheel set providing thread cutting selections between 0.4-2.0mm & 12-52 tpi

Read moreShow less
Scan the QR code to open this page on your phone.
Reference:
PL200AC-350
Love0
Add to wishlist
You may also like
No items
Description

  • • MGL 200 D Mini Lathe
  • • Variable Spnidle Speed
  • • Spindle Digital Read Out
  • • Aluminum Hand Wheel
  • • Constructed with cast iron giving great rigidity
  • • Precision ground Vee bed slide ways
  • • Fully featured saddle and carriage assembly including powered lead screw
  • • 450W motor with variable speed and a 2 speed gearbox
  • • Change wheel set providing thread cutting selections between 0.4-2.0mm & 12-52 tpi

Swing over bed 180 mm

Distance between centers  Model 200

200 mm
                                              200 mm
Hole through spindle 20 mm
Cross slide travel 65 mm
Compound travel
55 mm
Spindle taper MT3
Tailstock taper MT2
Spindle speed  Low range 100-1100 ±10% rpm
High range 100-2500 ±10% rpm
Motor output power 450 W
Range of threads  Metric  version 0.4-2.0 mm (10 thread pitches)
Imperial version 12-52 TPI (18 thread pitches)
Overall dimension(LxWxH)  Model200 600x300x300 mm

Weight(Net/Gross)              Model 200 33/36 kg
Packing size (LxWxH)         Model 200 690x360x390 mm
