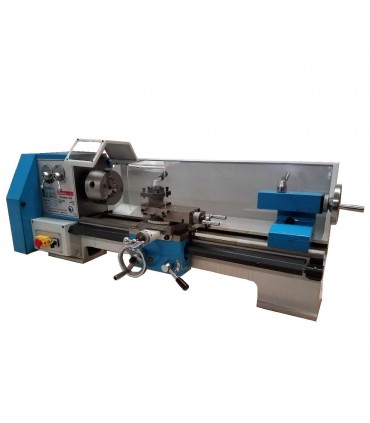

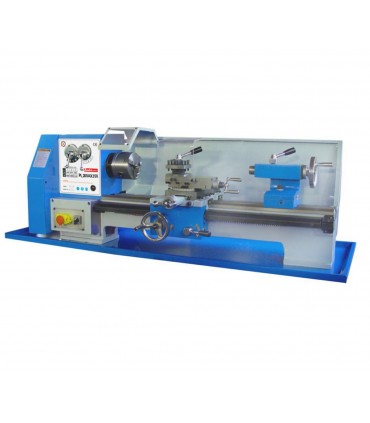

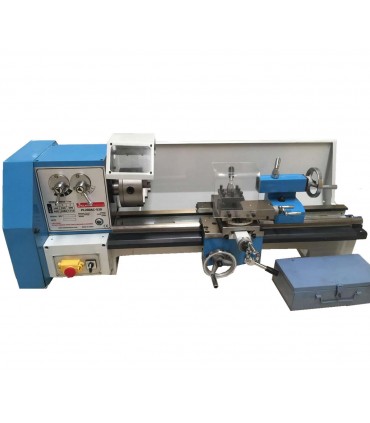

Lathe PL 200AC- 520

FEATURE:

Metal Gear

100 mm 3 jaw chuck

A and B 3 steps manual gear box
●  V-way bed is hardened and precision ground.
 Spindle is supported by precision taper roller bearing.
 Power longitudinal feed allows threading.
 Adjustable gibs for slideways.
 Tailstock can be offset for turning tapers.
 Tolerance test certificate, test fIow chart included.



Read moreShow less
Scan the QR code to open this page on your phone.
Reference:
PL200AC-520
Love1
Add to wishlist
You may also like
Description

FEATURE:

Metal Gear

100 mm 3 jaw chuck

A and B 3 steps manual gear box
●  V-way bed is hardened and precision ground.
 Spindle is supported by precision taper roller bearing.
 Power longitudinal feed allows threading.
 Adjustable gibs for slideways.
 Tailstock can be offset for turning tapers.
 Tolerance test certificate, test fIow chart included.



 Model No.
PL 200AC - 520

 Specifications
 Distance between centers
520 mm
 Swing over bed
200 mm
 Swing over cross slide
150 mm
 Width of bed
135 mm
 Taper of spindle bore
MT3
 Spindle bore
26 mm
 Range of spindle speeds (steps)
A Speed: 1 - 140 / 2-250 /3-390 RPM
B Speed : 1-600/B-1080/C-1710 RPM
 Range of longitudinal feeds
0.10 - 0.20 mm

 Range of inch threads

10 - 44 T.P.I - 10 rang
 Range of metric threads
0.4-3 mm - 12 rang
 Top slide travel
70 mm
 Cross slide travel
115 mm
 Tailstock quill travel
70 mm
 Taper of tailstock quill
MT 2
 Main motor
550 W
 Packing size
1100x560x560 mm
 Net weight
130 kg



 Standard Accessories
 Optional Accessories
 3-jaw chuck (125 mm)
 4-jaw chuck (100 mm)
 Splash guard
 Backplate
 Chip tray
 Follow rest
 Toolbox & tools
 Steady rest

 Face plate (175mm)

 Threading dial

 Stand





Read moreShow less
Product Details
PL200AC-520
Attachments
Lathe PL200AC-520
Manual and Specification
Download (20.88MB)
