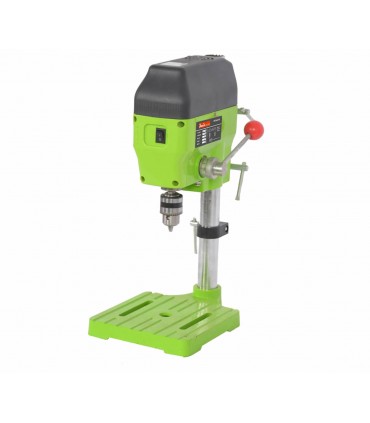

Mini Bench Drill MDV 480 B

Mini Bench Drill MDS 480B


● Variable Speed

● 2 Steps Pulley

● Dye-Cast Aluminum body , Cast Iron Basement

● Powder Coating Color


very high speed drill .body made of high quality die cast aluminum with powder coating color . its similar MDS 480A but the body and size of machines is bigger and equipped a three step pulley so plus variable speed , user have different power by changing belt pulley step as well .after received the machine , user assemble it by some easy step follow by manual .its a powerful bench drill for a range of color metal , plastic , wood and such material like that . plus motor and spindle have three step pulley for different speed and power to match of user needs . the main basement from cast iron .

AED330.00
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
MDV-480B
Love0
Add to wishlist
Related products
Description

Mini Bench Drill MDS 480B


● Variable Speed

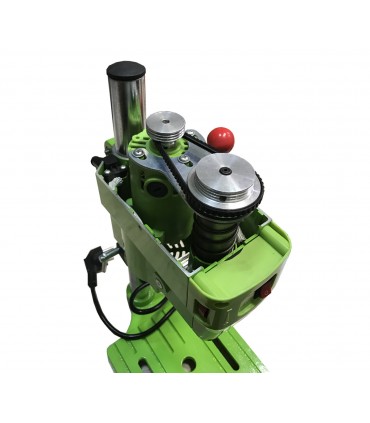

● 2 Steps Pulley

● Dye-Cast Aluminum body , Cast Iron Basement

● Powder Coating Color


Very high speed drill ,body made of high quality die cast aluminum with powder coating color . its similar MDS 480A but the body and size of machines is bigger and equipped a three step pulley so plus variable speed , user have different power by changing belt pulley step as well .after received the machine , user assemble it by some easy step follow by manual .its a powerful bench drill for a range of color metal , plastic , wood and such material like that . plus motor and spindle have three step pulley for different speed and power to match of user needs . the main basement from cast iron and this drill basement is match with all model aluminum cross table MCT series and convert the drill to light mill machine for cutting plastic and wood . include the machine user find tools setting and extra belt .

the drill bit  3 jaw chuck fix on machine spindle by conical shape so fix it on spindle shaft and hitting the chuck by plastic hummer for tightening     .



 Model No.
MDS 480B

 Specifications
   Drill bit capacity :
1 ~ 10 mm
   Holding diameter :
45 mm (collar size)
 Drilling depth :
45 mm
 Table size :
170x 170 mm
   Max distance between :
220 mm

 Speed variable (2 steps pulley):

first :0 ~5500 RPM
second :0 ~11000 RPM
 Top slide travel :
45 mm
 Tail stock quill travel :
40 mm
   Motor power :
480 W
 Weight (net /gross ) :
6 / 7 kg
   Voltage :
220-250 V / 50 -60 Hz
   Over all dimension (L x W x H) :
250 x 250 x 480 mm
   Pack size (L x W x H) :
250 x 280 x 500 mm



Product Details
MDV-480B

Data sheet

Dimension
250 x 250 x 480 mm
Pack Dimension
250 x 280 x 500 mm
Weight Grass / Net
6 / 7 kg
voltag
220 ~250 V / 50 ~60 Hz
Power
480 W
