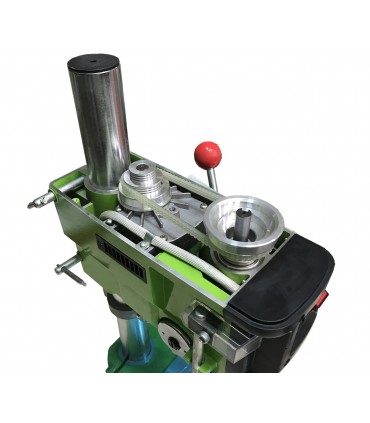

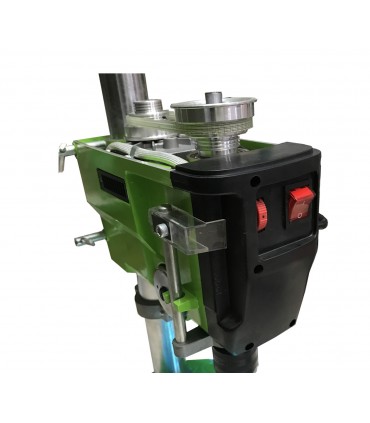

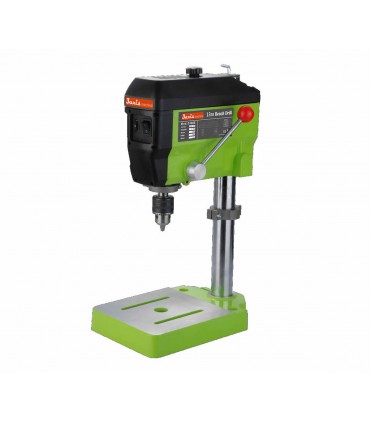

Bench Drill MDV 600

Professional Bench Drill MDS 600


● Variable Speed

● 3 Steps Pulley

● Dye-Cast Aluminum body , Cast Iron Basement

● Powder Coating Color


Its a powerful bench drill for a range of material , all kind of soft metal , color metal , plastic , wood and such material like that . machine equipped by a powerful dc motor 600 watt and variable speed , plus motor and spindle have three step pulley for different speed and power to match of user material . body make from high quality die cast aluminum and some cover parts by plastic . the main basement from cast iron and this drill basement is match with all model aluminum cross table MCT series and convert the drill to light mill machine for cutting plastic and wood . include the machine user find tools setting and extra belt .

AED510.00
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
MDV-600
Love0
Add to wishlist
Related products
Description

Professional Bench Drill MDS 600


● Variable Speed

● 3 Steps Pulley

● Dye-Cast Aluminum body , Cast Iron Basement

● Powder Coating Color


Its a powerful bench drill for a range of material , all kind of soft metal , color metal , plastic , wood and such material like that . machine equipped by a powerful dc motor 600 watt and variable speed , plus motor and spindle have three step pulley for different speed and power to match of user material . body make from high quality die cast aluminum and some cover parts by plastic . the main basement from cast iron and this drill basement is match with all model aluminum cross table MCT series and convert the drill to light mill machine for cutting plastic and wood . include the machine user find tools setting and extra belt .



 Model No.
MDS 600

 Specifications
   Drill bit capacity :
1 ~ 13 mm
   Holding diameter :
43mm (collar size)
 Drilling depth :
63mm
 Table size :
205x 205 mm
   Max distance between :
230 mm

 Speed variable (3steps pulley):

first :0 ~1100 RPM
second :0 ~2500 RPM
third  :0 ~4500 RPM
 Top slide travel :
60 mm
 Tail stock quill travel :
70 mm
   Motor power :
600 W
 Weight (net /gross ) :
14 / 17 kg
   Voltage :
220-250 V / 50 -60 Hz
   Over all dimension (L x W x H) :
200 x 280 x 400 mm
   Pack size (L x W x H) :
260 x 410 x 520 mm



Product Details
MDV-600

Data sheet

Dimension
200 x 280 x 400 mm
Pack Dimension
260 x 410 x 520 mm
Weight Grass / Net
14 / 17 kg
voltag
220 ~250 V / 50 ~60 Hz
Power
600 W
