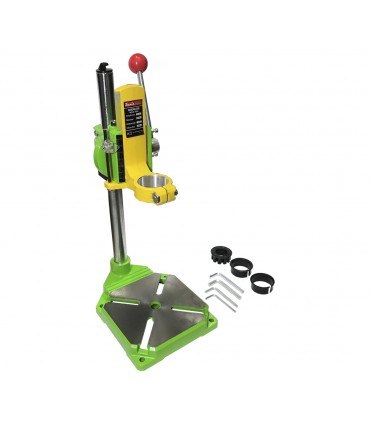

Precision Drill Stand MDS R90
● Match With Cross Table MT 19067/ 20050
● 3 Ring Connector
● Dye-Cast Aluminum Body , Cast Iron Basement
● Powder Coating Color

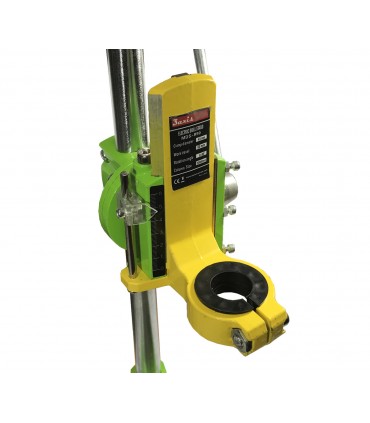

Two precision rail let the head come down the and up by high precision , the rail have three screw for adjust and set the slider, for professional job it good specification . user could make the hole by minimum tolerate and for small job its a high quality drill stand . the original size of drill keeper ring is 50 mm but in the pack user could find 3 different size ring to fix different model of drill , in the below table user could see the size of them . head of this drill stand can rotate 90 degree and the main body made of aluminum by die cast and basement from cast iron .
Precision Drill Stand MDS R90
● Match With Cross Table MT 19067 / 20050

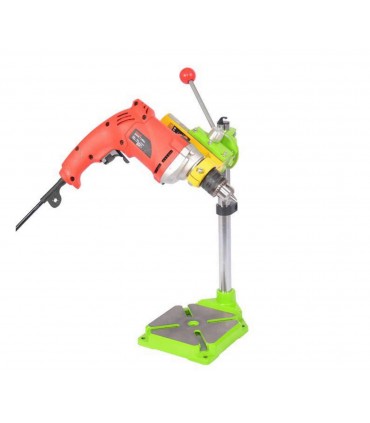

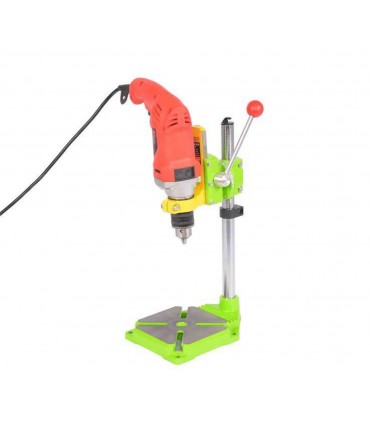

● 3 Ring Connector
● Dye-Cast Aluminum Body , Cast Iron Basement
● Powder Coating Color

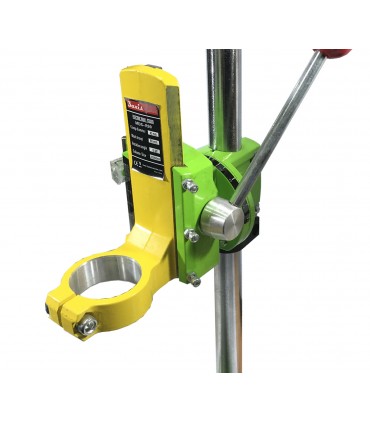

Two precision rail let the head come down the and up by high precision , the rail have three screw for adjust and set the slider, for professional job it good specification . user could make the hole by minimum tolerate and for small job its a high quality drill stand .in main body embedded a indicator for depth. the original size of drill keeper ring is 50 mm but in the pack user could find 3 different size ring to fix different model of drill , in the below table user could see the size of them . head of this drill stand can rotate 90 degree and the main body made of aluminum by die cast and basement from cast iron . good color by powder coating technology . drill stand is not assembled products and user must assemble it by some easy step , manual and wrench is include the pack .
|
Model No.
|
MDS R90
|
|
|
|
|
Specifications
|
|
|

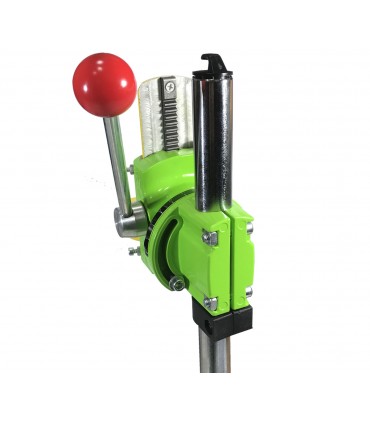

Head rotation :
|
90 Degree
|
|
Drilling depth :
|
60mm
|
|
Table size :
|
160x 160
|
| Max distance between : |
160 mm
|
| 3 Plastic ring size : |
Original Size : 42 mm ,ring 1 : 38 mm,ring 2 :36 mm,ring 3 :25 mm
|
|
Top slide travel :
|
60 mm
|
|
Column size :
|
395 mm
|
|
Over all dimension (L x W x H):
|
170 x 170 x 400 mm
|
|
Packing size :
|
180 x 250 x 300 mm
|
|
Weight (net /gross ) :
|
4.5 / 5 kg
|
Data sheet
