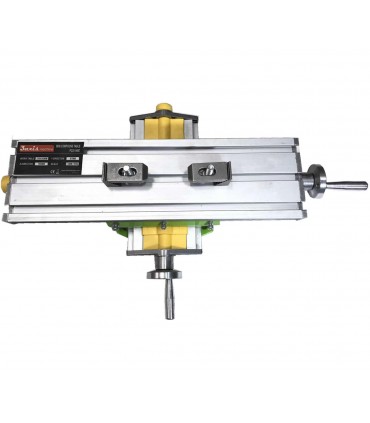

Mini Compound Table PCT 19067

Mini Compound Table  MCT19067

  • Lead screw axis
  • Aluminum Extrude body
  • Aluminum die cast  basement
  • Powder coating color

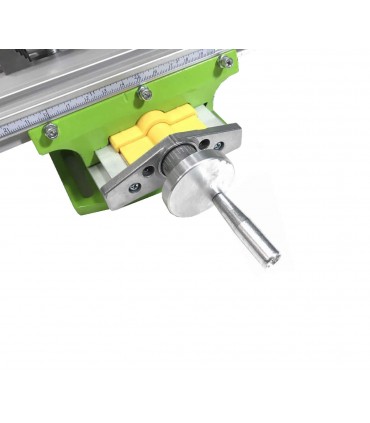

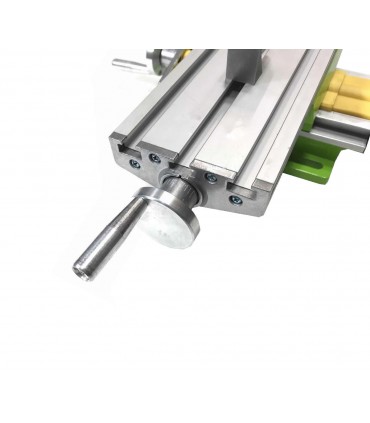

The table is similar compound table MCT20050 except most of the parts in this model convert to die cast aluminum parts and the clamps in this table made of still and professional model . the Y axis movement is  a little more and X axis a little less , but most specification is totally same . This is a light duty table for wood , plastic and paperboard ,the body made of light aluminum extrude and basement from die cast aluminum . two hand wheel help user move the axis by lead screw pitch . the pack include two clamp for fix the parts on table .

Attention : This table is not suitable for cutting  any kind of metal .

AED295.00
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Availability date: 2018-02-04
Condition
New product
Reference:
PCT-19067
Love0
Add to wishlist
Related products
Description

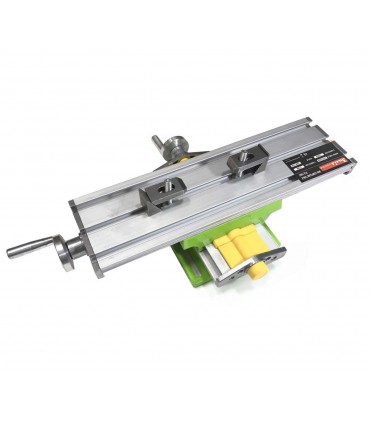

Mini Compound Table  MCT19067

  • Lead screw axis
  • Aluminum Extrude body
  • Aluminum die cast  basement
  • Powder coating color

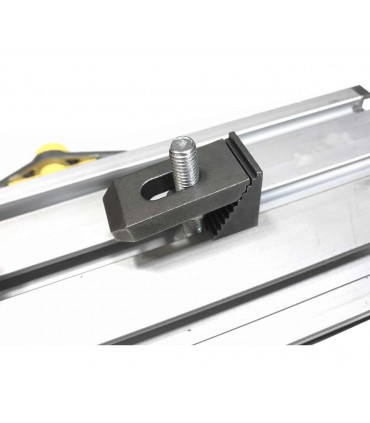

The table is similar compound table MCT20050 except most of the parts in this model convert to die cast aluminum parts and the clamps in this table made of still and professional model . the Y axis movement is  a little more and X axis a little less , but most specification is totally same . This is a light duty table for wood , plastic and paperboard ,the body made of light aluminum extrude and basement from die cast aluminum . two hand wheel help user move the axis by lead screw pitch . the pack include two clamp for fix the parts on table ,the table parts plating and paint with good quality .and if you are professional user you could convert  the table to a mini light duty  mini mill with MDV drill series , all connection is match with this kind of Drill . table let you cut wood and plastic and soft material .

Attention : This table is not suitable for cutting  any kind of metal .

 Model No.
MCT 19067

 Specifications
   Max X travel :
190  MM
 Max Y travel :
67 mm
 Axis screw  :
lead screw 1mm pitch
   Body material  :
aluminum extrude
 Basement material :
aluminum die cast
   Weight (net /gross ) :
2 / 2.5 kg
   Over all dimension (L x W x H) :
180 x 250 x 120 mm
   Pack size (L x W x H) :
200 x 260 x150 mm

Product Details
PCT-19067

Data sheet

Dimension
180 x 250 x 170 mm
Pack Dimension
200 x 260 x180 mm
Weight Grass / Net
2 / 2.5 kg
