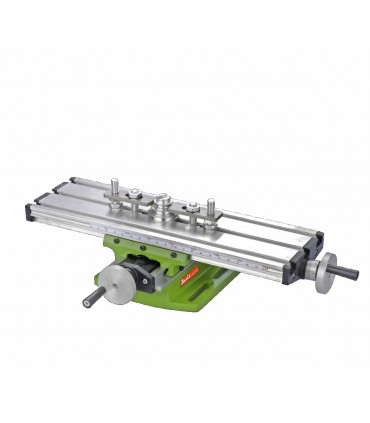

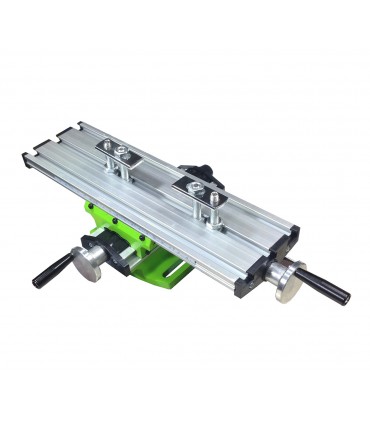

Mini Compound Table MCT20050
- Lead screw axis
- Aluminum Extrude body
- Aluminum die cast basement
- Powder coating color
This is a light duty table for wood , plastic and paperboard ,the body made of light aluminum extrude and basement from die cast aluminum . two hand wheel help user move the axis by lead screw pitch . the pack include two clamp for fix the parts on table ,the table parts plating and paint with good quality .and if you are professional user you could convert the table to a mini light duty mini mill with MDV drill series .
Attention : This table is not suitable for cutting any kind of metal .
Mini Compound Table MCT20050
- Lead screw axis
- Aluminum Extrude body
- Aluminum die cast basement
- Powder coating color
This is a light duty table for wood , plastic and paperboard ,the body made of light aluminum extrude and basement from die cast aluminum . two hand wheel help user move the axis by lead screw pitch . the pack include two clamp for fix the parts on table ,the table parts plating and paint with good quality .and if you are professional user you could convert the table to a mini light duty mini mill with MDV drill series , all connection is match with this kind of Drill . table let you cut wood and plastic and .some cower and parts in this model of table made of plastic but quality is the best .
Attention : This table is not suitable for cutting any kind of metal .
Model No.
|
MCT 20050
|
|
|
Specifications
|
|
Max X travel :
|
200 MM
|
Max Y travel :
|
50 mm
|
Axis screw :
|
lead screw 1mm pitch
|
Body material :
|
aluminum extrude
|
Basement material :
|
aluminum die cast
|
Weight (net /gross ) :
|
1.5 / 2 kg
|
Over all dimension (L x W x H) :
|
180 x 250 x 100 mm
|
Pack size (L x W x H) :
|
200 x 260 x140 mm
|
Data sheet
- Dimension
- 170x170x450 mm
- Pack Dimension
- 200x200x400
- Weight Grass / Net
- 3/4 kg
