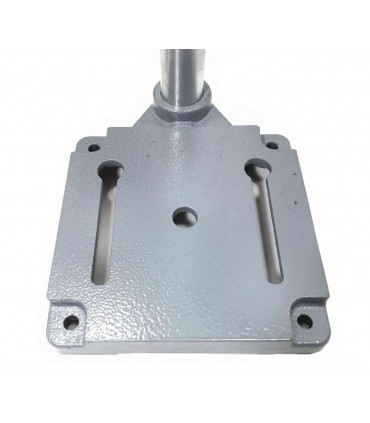

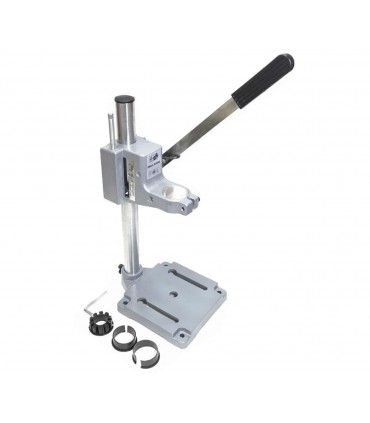

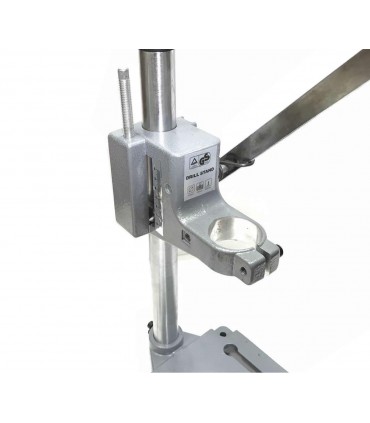

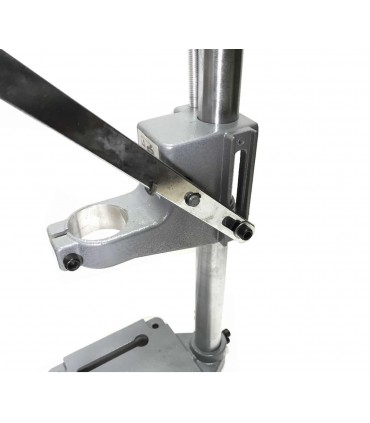

Precision Drill Stand MDS P30
● Match With Cross Table MT 19067 / 20050
● 3 Ring Connector
● Dye-Cast Aluminum Body and cast iron basement
● Powder Coating Color
For general job and drilling with aluminum die cast body and cast iron basement . its easy to use drill stand .in main body embedded a indicator for depth. the original size of drill keeper ring is 40 mm but in the pack user could find 3 different size ring to fix different model of drill , in the below table user could see the size of them . the main body made of aluminum die cast and basement from cast iron. good color by powder coating technology .
Precision Drill Stand MDS P30
● Match With Cross Table MT 19067 / 20050
● 3 Ring Connector
● Dye-Cast Aluminum Body and cast iron basement
● Powder Coating Color
For general job and drilling with aluminum die cast body and cast iron basement . its easy to use drill stand .in main body embedded a indicator for depth. the original size of drill keeper ring is 40 mm but in the pack user could find 3 different size ring to fix different model of drill , in the below table user could see the size of them . the main body made of aluminum die cast and basement from cast iron. good color by powder coating technology . drill stand is not assembled products and user must assemble it by some easy step , manual and wrench is include the pack .
|
Model No.
|
MDS P30
|
|
|
|
|
Specifications
|
|
|
Drilling depth :
|
50mm
|
|
Table size :
|
160x 160
|
| Max distance between : |
160 mm
|
| 3 Plastic ring size : |
Original Size : 42 mm ,ring 1 : 38 mm,ring 2 :36 mm,ring 3 :25 mm
|
|
Top slide travel :
|
50 mm
|
|
Column size :
|
350 mm
|
|
Over all dimension (L x W x H):
|
170 x 170 x 400 mm
|
|
Packing size :
|
180 x 250 x 400 mm
|
|
Weight (net /gross ) :
|
3 / 4 kg
|
