FEATURE:

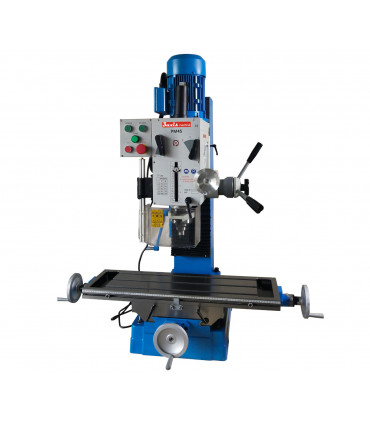

- Mill PM 45 with digital read out and z digital ruler
- Extremely quite operation .
- High precision grinding spindle .
- Large square column casting and table .
- Gear head enables to change speed quickly .
- Head tilted left & right .
- High precision manual fine feed .
- Positive locks for table , head , spindle quill .
- Adjustable taper gibs for slide ways .
- Power elevation mill head .
- Positive and easy to read depth gauge .
- Easy reading chrome finish dial .
- Complete electric box and controlling station .
- Variable speed power feed table .
- Iron casting mill stand .
- Equipped with double speed motor , tapping assembly .
- Mill PM 45 with digital read out and z digital ruler
- Extremely quite operation .
- High precision grinding spindle .
- Large square column casting and table .
- Gear head enables to change speed quickly .
- Head tilted left & right .
- High precision manual fine feed .
- Positive locks for table , head , spindle quill .
- Adjustable taper gibs for slide ways .
- Power elevation mill head .
- Positive and easy to read depth gauge .
- Easy reading chrome finish dial .
- Complete electric box and controlling station .
- Variable speed power feed table .
- Iron casting mill stand .
- Equipped with double speed motor , tapping assembly .
Model No.
|
PM 45
|
Specifications
|
|
Max. Drilling capacity
|
40 mm
|
Max. End milling capacity
|
32 mm
|
Max. Face milling capacity
|
80 mm
|
Table size
|
800x240 mm
|
Table travel ( X , Y )
|
560X230 mm
|
T-slot
|
3x14 mm
|
Spindle taper
|
MT3/RT4/R8/ISO30
|
Spindle Strocke
|
120 mm
|
Step of spindle speeds
|
Variable
|
Range of spindle speeds
|
60-2500 rpm
|
Spindle incline angle
|
90 degree L / 90 degree R
|
Distance from spindle to column
|
260 mm
|
Distance from spindle nose to table
|
470 mm
|
Brushless Motor power
|
2.2 KW / 220 V / 50~60 Hz
|
Machine Overall dimension (LxWxH)
|
|
Packing size (LxWxH)
|
1080x960x1400 mm
|
Net weight
|
580 kg
|
Standard Accessories
|
Optional Accessories
|
Toolbox & tools
|
Tapping Function
|
Drawbar
|
Keyless Drill Chuck 3-16 mm
|
Arbor MT3/B16-M10 |
ER32 Collet Chucks MT3-ER32/12pcs
|
Digital Depth Ruler
|
Vice BMS 100
|
Spindle Cover With Micro Switch
|
HHS 19 Pcs Drill Sets
|
Drill Chuck 3-16/B16
|
End Mill Sets 20Pcs 3-20 mm
|
|
3-Axis DRO (Magnetic Scales ) |
|
58 Pcs Clamping Kits M12
|
Oil Tray
|
|
Stand
|
|
|
|
|
|
|
|
|
