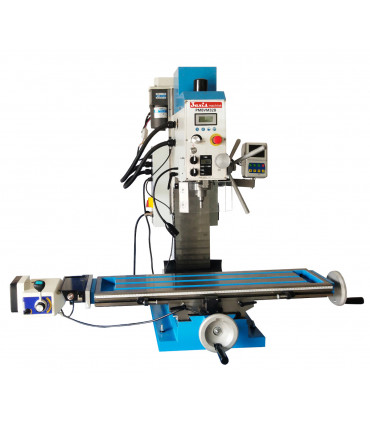

Mill PMB 32B - Brushless Motor

FEATURE:

  • Mill PMB 32 B with digital read out and z digital ruler
  • Variable speed enables to operate easily .
  • Spindle is supported by high precision taper roller bearing .
  • Single speed belt drive provide more quiet and easy operation .
  • Mill head can be tilled 90 Degree , left and right
  • Precision manual fine down feed .
  • Easy reading scale has satin chrome finish .
  • Bigger table provides more capacity .
  • Dovetail column , base & worktable with adjustable taper gibs .
Read moreShow less
Scan the QR code to open this page on your phone.
Condition
New
Reference:
PMB-32B
Love6
Add to wishlist
You may also like
Description

FEATURE:
  • Mill PMB 32 B with digital read out and z digital ruler
  • Variable speed enables to operate easily .
  • Spindle is supported by high precision taper roller bearing .
  • Single speed belt drive provide more quiet and easy operation .
  • Mill head can be tilled 90 Degree , left and right
  • Precision manual fine down feed .
  • Easy reading scale has satin chrome finish .
  • Bigger table provides more capacity .
  • Dovetail column , base & worktable with adjustable taper gibs .



 Model No.
             PMB 32 B
 Specifications
 Max. Drilling capacity
32 mm
 Max. End milling capacity
20 mm
 Max. Face milling capacity
76 mm
 Table size
                 840x210 mm
 Table travel ( X , Y )
                   565X220 mm
 Max. vertical travel
 270 mm
   T-slot
 3x14 mm
   Spindle taper
          MT3/R8/ISO30
   Spindle Strocke
   100 mm
 Step of spindle speeds
  Variable
 Range of spindle speeds
       80-2350 rpm
 Spindle incline angle
    90 degree L / 90 degree R
 Distance from spindle to column
    190 mm
 Distance from spindle nose to     table
      470 mm
 Brushless Motor power
     1.5 KW / 220 V / 50~60 Hz
 Machine Overall dimension              (LxWxH)
           1000x710x1020 mm
 Packing size (LxWxH)
        1050x740x1150 mm
 Net weight
     240 kg



 Standard Accessories
 Optional Accessories
 Toolbox & tools
   Tapping Function
 Drawbar
 Keyless Drill Chuck 3-16 mm
   Arbor MT3/B16-M12
 ER25 Collet Chucks MT3-ER32/12pcs
 Digital Depth Ruler
 Vice BMS 150
 Spindle Cover With Micro Switch
 HHS 19 Pcs Drill Sets
 Drill Chuck 3-16/B16
 End Mill Sets 7Pcs 3-20 mm

    3-Axis DRO (Magnetic Scales )

 58 Pcs Clamping Kits M12
 Oil Tray

 Stand

 Luxury Stand









Read moreShow less
