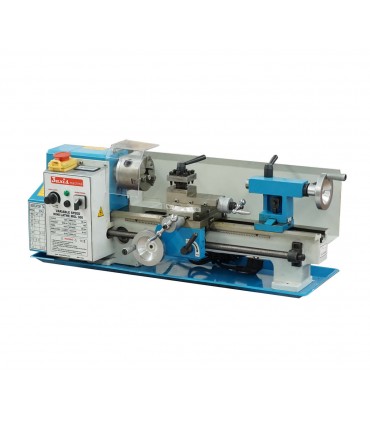

Mini Lathe MGL 300

  • • TLM-HV30 200 D Mini Lathe

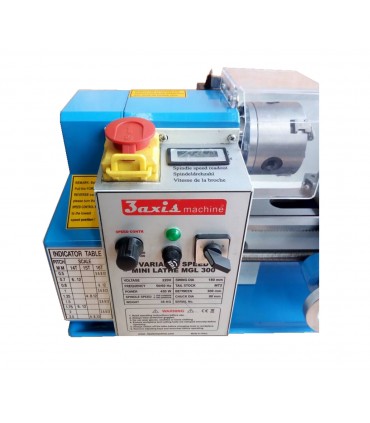

  • • Variable Spnidle Speed
  • • Spindle Digital Read Out

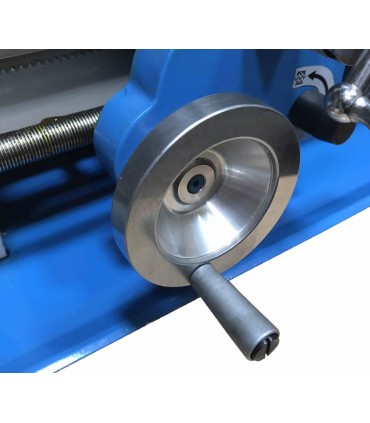

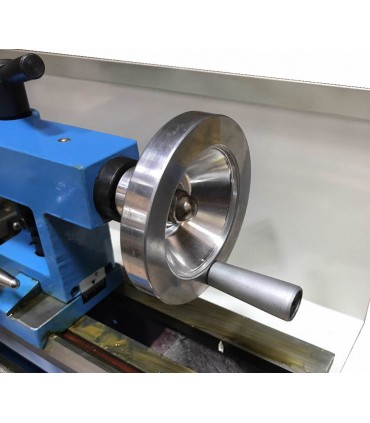

  • • Aluminum Hand Wheel
  • • Constructed with cast iron giving great rigidity
  • • Precision ground Vee bed slide ways
  • • Fully featured saddle and carriage assembly including powered lead screw
  • • 150W motor with variable speed and a 2 speed gearbox

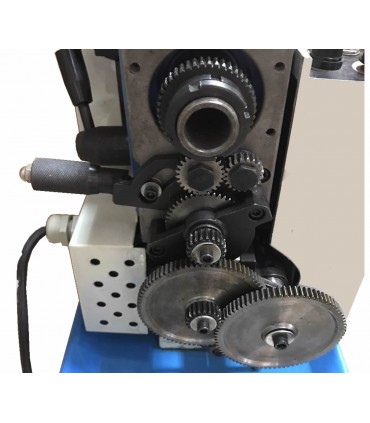

  • • Change wheel set providing thread cutting selections between 0.4-2.0mm & 12-52 tpi

AED2,550.00
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
MGL-300
Love0
Add to wishlist
Related products
Description
  •  MGL 300 Mini Lathe
  •  Variable Spnidle Speed
  •  Spindle Digital Read Out
  •  Aluminum Hand Whee
  •  Constructed with cast iron giving great rigidity
  •  Precision ground Vee bed slide ways
  •  Fully featured saddle and carriage assembly including powered lead screw
  •  450W motor with variable speed and a 2 speed gearbox
  •  Change wheel set providing thread cutting selections between 0.4-2.0mm & 12-52 tpi

Swing over bed 180 mm

Distance between centers  Model 300

300 mm

Hole through spindle 20 mm
Cross slide travel 65 mm
Compound travel
55 mm
Spindle taper MT3
Tailstock taper MT2
Spindle speed  Low range 100-1100 ±10% rpm
High range 100-2500 ±10% rpm
Motor output power 450 W
Range of threads  Metric  version 0.4-2.0 mm (10 thread pitches)
Imperial version 12-52 TPI (18 thread pitches)
Overall dimension(LxWxH)  Model 300 600x300x300 mm
Weight(Net/Gross)              Model 300 38/43 kg

Packing size (LxWxH)         Model 300 690x360x390 mm
