FEATURE:
● Metal gears , 750 Watt Brushless Motor Power , 100 mm 3 Jaw Chuck.
● V-way bed is hardened and precision ground.
● Spindle is supported by precision taper roller bearing.
● Power longitudinal feed allows threading.
● Adjustable gibs for slideways.
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test fIow chart included.
|
FEATURE: ● Metal gears , 750 Watt Brushless Motor Power , 100 mm 3 Jaw Chuck. ● V-way bed is hardened and precision ground. |
|

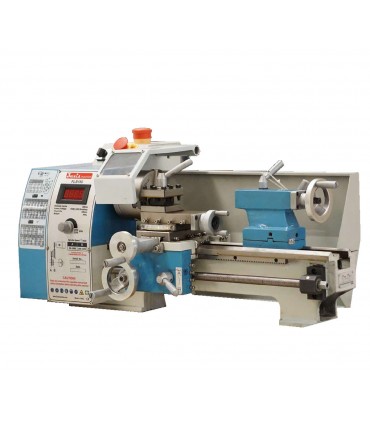

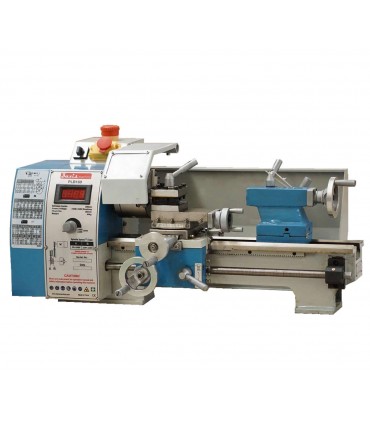

Model No.
|
PLB-180V
|
|
Item No.
|
|
|
Specifications
|
|
|
Distance between centers
|
300 mm
|
|
Swing over bed
|
180 mm
|
|
Swing over cross slide
|
95 mm
|
|
Width of bed
|
100 mm
|
|
Taper of spindle bore
|
MT3
|
|
Spindle bore
|
21 mm
|
|
Range of spindle speeds (steps)
|
50-2500 rpm
|
|
Range of longitudinal feeds
|
0.08 - 0.16 mm
|
|
Range of inch threads |
10 - 44T.P.I
|
|
Range of metric threads
|
0.5-3 mm
|
|
Top slide travel
|
55 mm
|
|
Cross slide travel
|
75 mm
|
|
Tailstock quill travel
|
60 mm
|
|
Taper of tailstock quill
|
MT2
|
|
Main motor
|
750W - Brushless Motor
|
|
Packing size
|
800x480x460 mm
|
|
Net weight
|
60 kg
|
|
Standard Accessories
|
Optional Accessories
|
|
3-jaw chuck (100mm)
|
4-jaw chuck (100mm)
|
|
Splash guard
|
Backplate
|
|
Chip tray
|
Follow rest
|
|
Toolbox & tools
|
Steady rest
|
|
|
Face plate (175mm)
|
|
|
Threading dial
|
|
|
Stand
|
