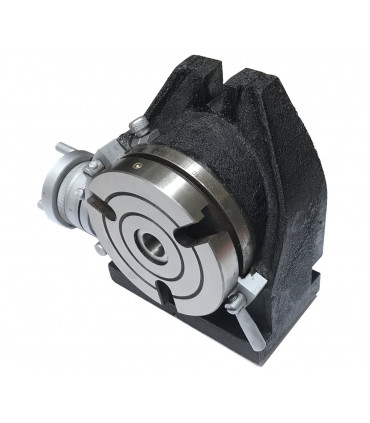

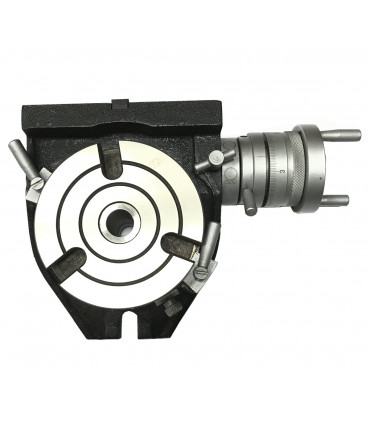

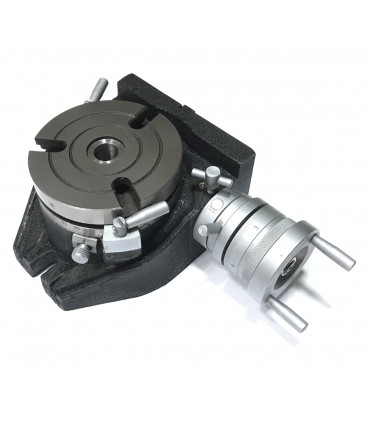

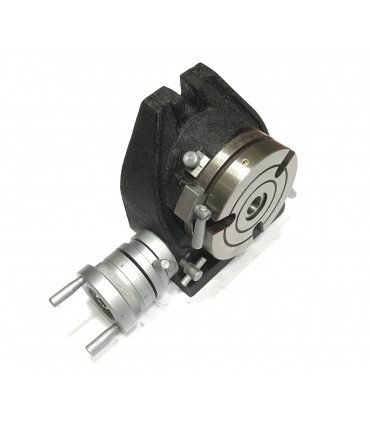

FEATURE: ● Precision rotary table for mill machine Chose the vice depend on your need size from drop down list . |
|
Horizontal & Vertical Rotary Table FEATURE: ● Precision rotary table for mill machine Chose the vice depend on your need size from drop down list . |
|
The size of the Rotary Table as below dimension by mm
|
|||||||||||
 |
|||||||||||
|
Rotary Table
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Weigh
|
|||
|
HV3
|
98
|
115
|
75
|
76
|
12
|
60
|
130
|
5 kg
|
|||
|
HV4
|
145
|
150
|
75
|
110
|
12
|
85
|
140
|
8.3 kg
|
|||
|
HV5
|
155
|
170
|
80
|
127
|
12
|
90
|
145
|
9.6 kg
|
|||
|
HV6
|
200
|
190
|
81
|
150
|
14
|
100
|
160
|
12.5 kg
|
|||
|
HV8
|
285
|
236
|
100
|
200
|
14
|
150
|
210
|
24.5 kg
|
|||
|
HV10
|
328
|
286
|
110
|
250
|
14
|
170
|
240
|
32 kg
|
|||
Pay attention on details information , it help to chose right rotary table as your job.
|
The size and detail specification of the Rotary Table
|
|||||||||||
|
|
|||||||||||
|
Specifications
|
HV3
|
HV4
|
HV5
|
HV6
|
HV8
|
HV10
|
|||||
|
Dimension of Table
|
76
|
110
|
127
|
150
|
200
|
250
|
|||||
|
Morse taper of the
central hole
|
2#
|
3#
|
|||||||||
|
Height of center for
vertical mounting
|
59
|
81.5
|
90
|
100
|
150
|
170
|
|||||
|
Width of T-slot
|
8
|
12
|
|||||||||
|
Adjacent angle of
table T-slot
|
90°
|
120°
|
90°
|
60°
|
|||||||
|
Width of locating
key
|
12
|
14
|
|||||||||
|
Module of the worm
gear
|
1
|
1.75
|
2
|
||||||||
|
Transmission ration of
the worm gear
|
1:36
|
1:72
|
1:72
|
1:90
|
|||||||
|
Graduation of the table
|
360°
|
||||||||||
|
Rotating angle of table
with revolution of the
worm
|
10°
|
5°
|
4°
|
||||||||
|
Minimum reading
of the vernier
|
10 "
|
||||||||||
|
Indexing accuracy
|
120 "
|
60 "
|
|||||||||
|
Max. bearing (H)
|
50
|
60
|
80
|
100
|
150
|
200
|
|||||
|
Max. bearing (V)
|
25
|
30
|
40
|
50
|
75
|
100
|
|||||
|
Packing size
|
260x180x10
|
290x220x150
|
340x250x160
|
340x250x160
|
340x350x180
|
390x360x200
|
|||||
|
Gross weight
|
5.5
|
9
|
10.6
|
13.5
|
25.5
|
38
|
|||||
|
Net weight
|
5
|
8.3
|
9.6
|
12.5
|
24.5
|
32
|
|||||
