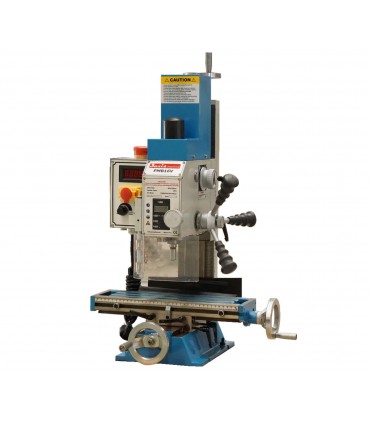

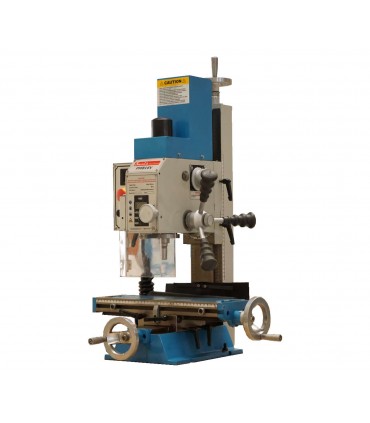

Mill PMB 16V - Brushless Motor

FEATURE:

  • Mill PLB 16 with digital read out and z digital ruler with 750 watt brushless motor
  • Variable Speed
  • Cast iron construction
  • Coarse feed for drilling, fine for milling
  • Column tilts up to 90° for angled machining
  • Two electronically variable control spindle speed ranges
  • Two function machine - vertical mill or small pillar drill
  • Supplied with 16mm chuck, drawbar and service tools
Read moreShow less
AED5,600.00
Scan the QR code to open this page on your phone.
Reference:
PMB-16V
Love1
Add to wishlist(1)
You may also like
Description

FEATURE:
  • Mill PLB 16 with digital read out and z digital ruler and 750 watt brushless motor
  • Vaeiable Speed
  • Cast iron construction
  • Coarse feed for drilling, fine for milling
  • Column tilts up to 90° for angled machining
  • Two electronically variable control spindle speed ranges
  • Two function machine - vertical mill or small pillar drill
  • Supplied with 16mm chuck, drawbar and service tools



 Model No.
PMB- 16V
 Specifications
 Drilling capacity
16 mm
 End milling capacity
16 mm
 Face milling capacity
50 mm
 longitudinal axis (X)
220 mm
 Cross axis (Y)
180 mm
 head stock travel
188 mm
   Throat
140 mm
 Max. distance spindle to table
210 mm

 Table effective size

400 x 120 mm
 T-slot size
12x3 mm
 Head tilt
90 degree L / 90 degree R
 Motor output power
750 W / 220 V / 50~60 Hz Brushless Motor
 Spindle speed
low range / high range100 ~1000 rpm 10% / 100~ 2000 rpm 10%
 Overall dimension              (LxWxH)
750x450x500 mm
 Packing size (LxWxH)
480x400x630 mm
 Weight (net /gross)
60 / 70 kg
 spindel taper
                                             MT 2



 Standard Accessories
 Optional Accessories
 Toolbox & tools
 MT 2 collet set , 6 pcs

 universal vice
 MT2 3 jaw chuck 5~22 mm

 horizontal vice

 Stand








Read moreShow less
Product Details
PMB-16V
Attachments
Mill PMB 16 V
Manual Mill PMB 16 V
Download (10.12MB)
