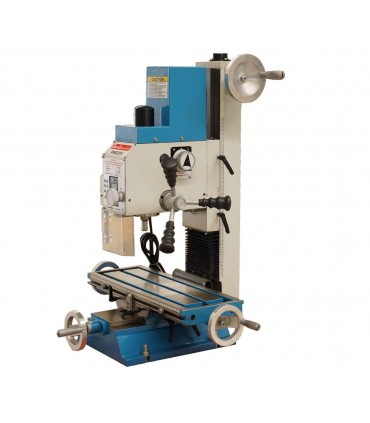

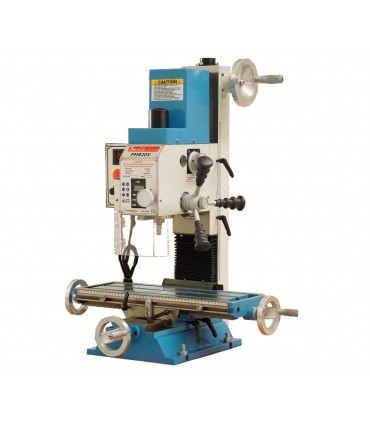

Mill PMB 20V- Brushless Motor

FEATURE:

  • Mill PM 20 with digital read out and z digital ruler
  • Variable Speed Control
  • Cast iron construction
  • Coarse feed for drilling, fine for milling
  • Column tilts up to 90° for angled machining
  • Two electronically variable control spindle speed ranges
  • Two function machine - vertical mill or small pillar drill
  • Supplied with 20 mm chuck, drawbar and service tools
Read moreShow less
AED6,850.00
Scan the QR code to open this page on your phone.
Condition
New
Reference:
PMB-20V
Love8
Add to wishlist(1)
You may also like
Description

FEATURE:
  • Mill PM 20 with digital read out and z digital ruler
  • Variable Speed Control
  • Cast iron construction
  • Coarse feed for drilling, fine for milling
  • Column tilts up to 90° for angled machining
  • Two electronically variable control spindle speed ranges
  • Two function machine - vertical mill or small pillar drill
  • Supplied with 20 mm chuck, drawbar and service tools



 Model No.
PMB 20V
 Specifications
 Drilling capacity
20 mm
 End milling capacity
20 mm
 Face milling capacity
63 mm
 longitudinal axis (X)
425 mm
 Cross axis (Y)
175 mm
 head stock travel
380 mm
   Throat
140 mm
 Max. distance spindle to      table
380 mm

 Table effective size

500 x 180 mm
 T-slot size
12x3 mm
 Head tilt
90 degree L / 90 degree R
 Motor output power
1100 W / 220 V / 50~60 Hz Brushless Motor
 Spindle speed
low range / high range100 ~1000 rpm 10% / 100~ 2000 rpm 10%
 Overall dimension              (LxWxH)
670x550x860 mm
 Packing size (LxWxH)
670x550x860 mm
 Weight (net /gross)
103 / 116 kg
 spindel taper
                                               MT2



 Standard Accessories
 Optional Accessories
 Toolbox & tools
 MT 2 collet set , 6 pcs

 universal vice
 MT2 3 jaw chuck 5~22 mm

 horizontal vice

 Stand








Read moreShow less
Product Details
PMB-20V
Attachments
Mill PMB20V - L
Manual Mill PMB20 V - L
Download (16.04MB)
