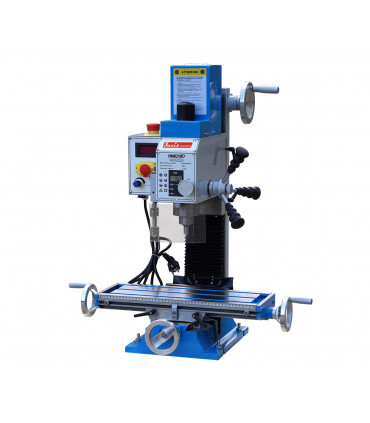

Mill PMB 25BD - Brushless Motor

FEATURE:

  • Mill PMB 25 BD with digital read out and z digital ruler
  • Variable speed enables to operate easily .
  • Spindle is supported by high precision taper roller bearing .
  • Single speed belt drive provide more quiet and easy operation .
  • Mill head can be tilled 90 Degree , left and right
  • Precision manual fine down feed .
  • Easy reading scale has satin chrome finish .
  • Bigger table provides more capacity .
  • Dovetail column , base & worktable with adjustable taper gibs .
Read moreShow less
Mill PMB 25 BD Table Size
Scan the QR code to open this page on your phone.
Condition
New
Reference:
PMB-25BD
Love0
Add to wishlist
You may also like
Description

FEATURE:
  • Mill PMB 25 BD with digital read out and z digital ruler
  • Variable speed enables to operate easily .
  • Spindle is supported by high precision taper roller bearing .
  • Single speed belt drive provide more quiet and easy operation .
  • Mill head can be tilled 90 Degree , left and right
  • Precision manual fine down feed .
  • Easy reading scale has satin chrome finish .
  • Bigger table provides more capacity .
  • Dovetail column , base & worktable with adjustable taper gibs .



 Model No.
             PMB 25 BD             PMB 25 BD L
 Specifications
 Max. Drilling capacity
25 mm
 Max. End milling capacity
16 mm
 Max. Face milling capacity
63 mm
 Table size
                 500x180 mm            700x180 mm
 Table travel ( X , Y )
                   240X140 mm           440x140 mm
 Max. vertical travel
270 mm
   T-slot
 3x12 mm
   Spindle taper
MT3/R8
   Spindle Strocke
 50 mm
   Step of spindle speeds
 Variable
 Range of spindle speeds
 50-2250 rpm
 Spindle incline angle
    90 degree L / 90 degree R
 Distance from spindle to column
    190 mm
 Distance from spindle nose to     table
    320 mm
 Brushless Motor power
     1.1 KW / 220 V / 50~60 Hz
 Machine Overall dimension              (LxWxH)
             760/960x580x780 mm
 Packing size (LxWxH)
                        560/600x900/730x770x900 mm
 Net weight
                103 KG / 113 kg  ( L )



 Standard Accessories
 Optional Accessories
 Toolbox & tools
   Tapping Function
 Drawbar
 Keyless Drill Chuck 3-16 mm
   Arbor MT3/B16-M12
 ER25 Collet Chucks MT2-ER25/62pcs
 Digital Depth Ruler
 Vice BMS80
 Spindle Cover With Micro Switch
 HHS 19 Pcs Drill Sets
 Drill Chuck 3-16/B16
 End Mill Sets 7Pcs 4-16 mm

    3-Axis DRO (Magnetic Scales )

 58 Pcs Clamping Kits M10
 Oil Tray

 Stan

 Luxury Stand
   Power Feed
