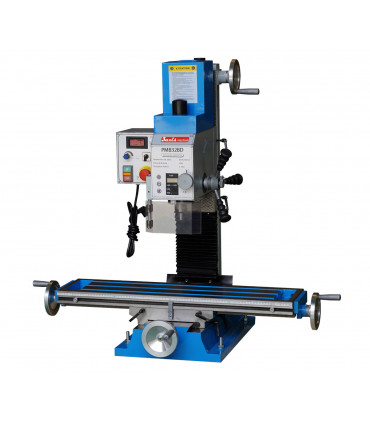

Mill PMB 32BD - Brushless Motor

FEATURE:

  • Mill PMB 32 BD with digital read out and z digital ruler
  • Variable speed enables to operate easily .
  • Spindle is supported by high precision taper roller bearing .
  • Single speed belt drive provide more quiet and easy operation .
  • Mill head can be tilled 90 Degree , left and right
  • Precision manual fine down feed .
  • Easy reading scale has satin chrome finish .
  • Bigger table provides more capacity .
  • Dovetail column , base & worktable with adjustable taper gibs .
Read moreShow less
Mill PMB 32 BD Table Size
Condition
New product
Reference:
PMB-32BD
Love0
Add to wishlist
Related products
Description

FEATURE:
  • Mill PMB 32 BD with digital read out and z digital ruler
  • Variable speed enables to operate easily .
  • Spindle is supported by high precision taper roller bearing .
  • Single speed belt drive provide more quiet and easy operation .
  • Mill head can be tilled 90 Degree , left and right
  • Precision manual fine down feed .
  • Easy reading scale has satin chrome finish .
  • Bigger table provides more capacity .
  • Dovetail column , base & worktable with adjustable taper gibs .



 Model No.
             PMB 32 BD             PMB 32 BD L
 Specifications
 Max. Drilling capacity
30 mm
 Max. End milling capacity
20 mm
 Max. Face milling capacity
76 mm
 Table size
                 700x210 mm            840x210 mm
 Table travel ( X , Y )
                   440X205 mm           580x205 mm
 Max. vertical travel
270 mm
   T-slot
 3x14 mm
   Spindle taper
         MT3/R8/ISO30
   Spindle Strocke
 70 mm
 Step of spindle speeds
  Variable
 Range of spindle speeds
  100-2250 rpm
 Spindle incline angle
    90 degree L / 90 degree R
 Distance from spindle to column
    190 mm
 Distance from spindle nose to     table
      470 mm
 Brushless Motor power
     1.5 KW / 220 V / 50~60 Hz
 Machine Overall dimension              (LxWxH)
                 860/1000x710x1020 mm
 Packing size (LxWxH)
             900/1050x740x1150 mm
 Net weight
                220 kg / 240 kg  ( L )



 Standard Accessories
 Optional Accessories
 Toolbox & tools
   Tapping Function
 Drawbar
 Keyless Drill Chuck 3-16 mm
   Arbor MT3/B16-M12
 ER25 Collet Chucks MT2-ER25/62pcs
 Digital Depth Ruler
 Vice BMS 150
 Spindle Cover With Micro Switch
 HHS 19 Pcs Drill Sets
 Drill Chuck 3-16/B16
 End Mill Sets 7Pcs 3-20 mm

    3-Axis DRO (Magnetic Scales )

 58 Pcs Clamping Kits M10
 Oil Tray

 Stand

 Luxury Stand
   Power Feed
